Ubiquiti

Part:
PBE-5AC-500

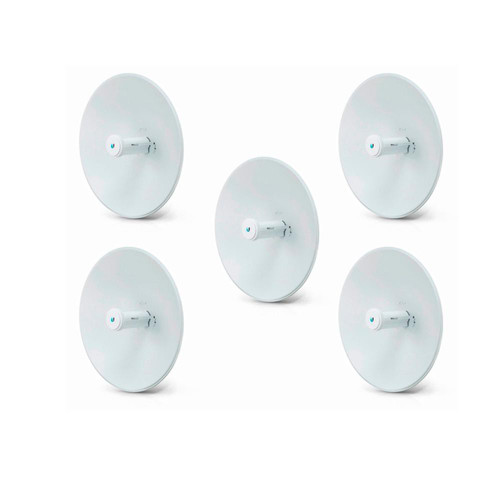

Ubiquiti UISP airMAX PowerBeam 5AC 500 mm Bridge (International Version)

$159.00
Condition:
New
Ubiquiti UISP airMAX PowerBeam 5AC 500 mm Bridge (International Version)
PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

High-Performance airMAX ac Bridge Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam ac is ideal for CPE deployments requiring maximum performance.

Features:

  • Highly Efficient Antenna Beam Performance
  • Custom Ubiquiti® airMAX® ac Processor
  • Up to 450+ Mbps Real TCP/IP Throughput
  • Innovative Snap and Lock Assembly
  • Proprietary InnerFeed™ Technology
  • 5 GHz, 25+ km link range
  • 450+ Mbps throughput
  • Improved mounting
  • Dedicated spectral analysis radio
  • Dedicated WiFi management radio

Note: Single-unit price shown. This product must be purchased in pairs to form links.

Dimensions

  • Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1")
  • With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4"

Weight

  • Without radome: 2.35 kg (5.18 lb)
  • With radome:  3.2 kg (7 lb)

Technical Description

  • Mechanical
    • Enclosure material: UV-stabilized plastic
    • Mounting: Pole mount kit (Included)
    • Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
    • Wind survivability: 96 km/h (60 mph)
  • Hardware
    • Networking interface: (1) GbE RJ45 port
    • Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
    • Power supply: 24V, 0.5A Gigabit PoE
    • Max. power consumption: 8.5W
    • Supported voltage range: 20-26V DC
    • ESD/EMP protection: Air/contact: ± 24 kV
    • LEDs: (1) Power, (1) LAN, (4) WLAN
    • Signal strength LEDs: Software-adjustable to correspond to custom RSSI levels
    • RoHS compliance: Yes
    • Salt fog test: IEC 68-2-11 (ASTM B117)
    • Equivalent: MIL-STD-810 G method 509.5
    • Vibration test: IEC 68-2-6
    • Temperature shock test: IEC 68-2-14
    • UV test: IEC 68-2-5 at 40° C (104° F)
    • Equivalent: ETS 300 019-1-4
    • Wind-driven rain test: ETS 300 019-1-4
    • Equivalent: MIL-STD-810 G method 506.5
    • Operating temperature: -40 to 70° C (-40 to 158° F)
    • Operating humidity: 5 to 95% noncondensing
    • Certifications: FCC, IC, CE
  • System
    • Gain: 27 dBi
    • Max. VSWR: 1.5:1
    • Channel sizes
    • PtP Mode
    • PtMP Mode:
    • 10/20/30/40/50/60/80 MHz
    • 10/20/30/40 MHz
    • Polarization: Dual linear
  • Operating Frequency (MHz)
    • Worldwide
      • 5150 - 5875 MHz

More Information

MFRPartNum:
PBE-5AC-500
Datasheet:
Click here
