PRODUCT SPECIFICATIONS

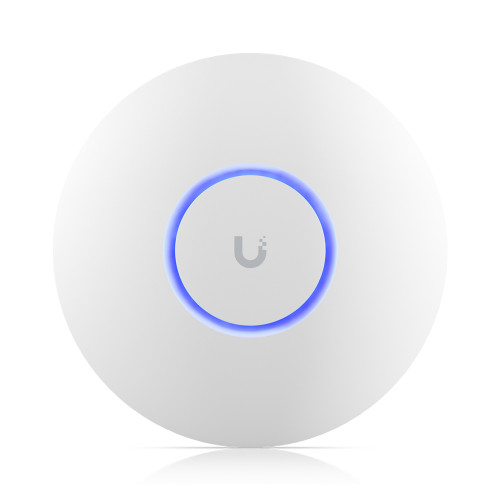

Ubiquiti U6-Pro - UniFi WiFi 6 Access Point
The Ubiquiti U6-Pro is a ceiling-mounted UniFi WiFi 6 access point designed for large offices. It delivers 6 spatial streams, supports up to 140 m² (1,500 ft²) of coverage, and supports 250+ clients.
The U6-Pro uses a GbE uplink and PoE power for straightforward UniFi deployment. It supports ceiling and wall mounting with the Pro Mount included, making it suitable for office wireless networks that need managed WiFi 6 coverage.
WiFi 6 Performance
The U6-Pro supports WiFi 6 with 4 x 4 MIMO on 5 GHz and 2 x 2 MIMO on 2.4 GHz. Maximum data rates are 4.8 Gbps on 5 GHz with BW160 and 573.5 Mbps on 2.4 GHz with BW40.
UniFi Management
The access point is managed through UniFi Network version 6.0.45 and later. Supported features include wireless meshing, band steering, fast roaming, advanced radio management, captive hotspot portal options, guest network isolation, PPSK, WiFi schedules, and Dynamic RADIUS-assigned VLAN.
Key Features
- Ceiling-mounted WiFi 6 access point designed for large offices
- 6 spatial streams
- 140 m² (1,500 ft²) coverage area
- 250+ max client count
- GbE uplink
- PoE power method
- Ceiling and wall mounting with Pro Mount included
- IP54 weatherproofing
Applications
- Large office WiFi deployments
- Ceiling-mounted UniFi wireless coverage
- Wall-mounted access point installations
- Guest WiFi networks using captive hotspot portal features
- Managed business WiFi 6 networks with UniFi Network
Technical Specifications
- Capacity
- Spatial Streams: 6
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 250+
- Ports / Interfaces
- Uplink: GbE
- Networking Interface: (1) GbE RJ45 port
- Wireless
- WiFi Standard: WiFi 6
- MIMO, 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- MIMO, 2.4 GHz: 2 x 2 (UL MU-MIMO)
- Max. Data Rate, 5 GHz: 4.8 Gbps (BW160)
- Max. Data Rate, 2.4 GHz: 573.5 Mbps (BW40)
- Antenna Gain, 5 GHz: 6 dBi
- Antenna Gain, 2.4 GHz: 4 dBi
- Max. TX Power, 5 GHz: 26 dBm
- Max. TX Power, 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates, 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- Supported Data Rates, 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- Supported Data Rates, 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
- Operating Frequency: US/CA: 2400 - 2472 MHz; U-NII-1: 5150 - 5250 MHz; U-NII-2A: 5250 - 5350 MHz; U-NII-2C: 5470 - 5725 MHz; U-NII-3: 5725 - 5850 MHz; Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz
- Security
- Guest Network Isolation: Supported
- Private Pre-Shared Key (PPSK): Supported
- Client Device Isolation: Supported
- RADIUS over TLS (RadSec): Supported
- Dynamic RADIUS-assigned VLAN: Supported
- Networking
- Wireless Meshing: Supported
- Band Steering: Supported
- 802.11v BSS Transition Management: Supported
- 802.11r Fast Roaming: Supported
- 802.11k Radio Resource Management (RRM): Supported
- Advanced Radio Management: Supported
- Passpoint (Hotspot 2.0): Supported
- WiFi Speed Limiting: Supported
- WiFi Schedules: Supported
- Hardware
- Management: Ethernet Bluetooth
- Enclosure Material: Polycarbonate
- Mount Material: Stainless steel (SUS304)
- LEDs: System, White/Blue
- Power
- Power Method: PoE
- Max. Power Consumption: 13W
- Supported Voltage Range: 44–57V DC
- Physical
- Dimensions: ⌀197 x 35 mm (⌀7.8 x 1.4')
- Weight: Device: 580 g (1.3 lb) With mount: 720 g (1.6 lb)
- Mounting: Ceiling, Wall (Pro Mount Included)
- Environmental
- Weatherproofing: IP54
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network Version 6.0.45 and later
- Captive Hotspot Portal, Custom Branding Landing Page: Supported
- Captive Hotspot Portal, Voucher Authentication: Supported
- Captive Hotspot Portal, Payment-Based Authentication: Supported
- Captive Hotspot Portal, External Portal Server Support: Supported
- Captive Hotspot Portal, Password Authentication: Supported
- Certifications
- NDAA Compliant: Supported
- Certifications: CE, FCC, IC, SRRC, Anatel: 00910-22-08356
