PRODUCT SPECIFICATIONS

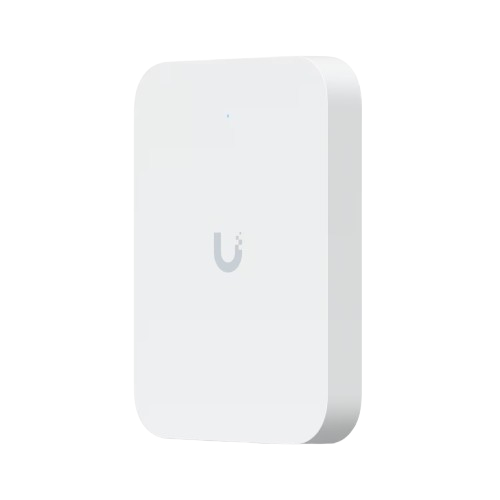

U7-Pro-Wall - Wall-mounted WiFi 7 Access Point
The U7-Pro-Wall is a comprehensive solution for high-speed, reliable WiFi coverage, perfectly suited for modern smart homes, ensuring robust performance and connectivity.
The U7-Pro-Wall is a high-performance WiFi 7 Access Point designed to provide seamless connectivity and high-speed internet coverage for home environments. Tailored for home builders, this access point supports 6 GHz WiFi, boasts six spatial streams, and offers robust coverage of up to 140 m² (1,500 ft²). With the ability to connect over 300 devices, the U7-Pro-Wall is perfect for modern smart homes.
Features
- WiFi 7 Support: Equipped with the latest WiFi 7 technology, including 6 GHz support, ensuring the fastest and most reliable connections.
- High Coverage and Capacity: Provides up to 140 m² (1,500 ft²) coverage and supports over 300 connected devices simultaneously.
- High-Speed Connectivity: Features a 2.5 GbE uplink for ultra-fast data transfer rates.
- PoE+ Powered: Simplifies installation with PoE+ power delivery, eliminating the need for additional power cables.
- Versatile Deployment: Can be mounted on walls or used with optional flush mount and table stand accessories (sold separately).
- Advanced Features: Future-ready with Multi-Link Operation (MLO) capability via a software update.
Applications
- Ideal for residential settings, particularly in smart homes requiring high-speed, reliable WiFi coverage across multiple devices and large areas.
Dimensions:
- 150 x 103 x 36 mm (5.9 x 4.1 x 1.4')
Weight:
- 580 g (1.3 lb)
Compatibilities
- International version
- POE
Technical Specification:
- Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4')
- WiFi Standard: WiFi 7
- Spatial Streams: 6
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Mounting Locations: Wall
- Mounting Plate: Included mount
- Power Method: PoE+
- Performance:
- MIMO:
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate:
- 6 GHz: 5.7 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain:
- 6 GHz: 6 dBi
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power:
- 6 GHz: 23 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates:
- 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- MIMO:
- Features:
- Wireless Meshing
- Band Steering
- 802.11v BSS Transition Management
- 802.11r Fast Roaming
- 802.11k Radio Resource Management (RRM)
- Advanced Radio Management
- Passpoint (Hotspot 2.0)
- Captive Hotspot Portal:
- Custom Branding Landing Page
- Voucher Authentication
- Payment-Based Authentication
- External Portal Server Support
- Password Authentication
- Guest Network Isolation
- Private Pre-Shared Key (PPSK)
- WiFi Speed Limiting
- Client Device Isolation
- WiFi Schedules
- RADIUS over TLS (RadSec)
- Dynamic RADIUS-assigned VLA
- Hardware:
- Max. Power Consumption: 22W
- Supported Voltage Range: 44—57V DC
- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight: 580 g (1.3 lb)
- Management: Ethernet
- Enclosure Material: Polycarbonate, aluminum
- Mount Material: Aluminum
More Information
MFRPartNum:
U7-PRO-WALL-US
