PRODUCT SPECIFICATIONS

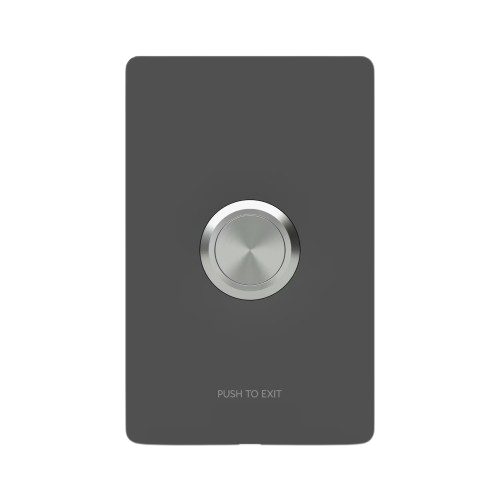

Ubiquiti UA-Button – Push-to-Exit Access Button
The Ubiquiti UA-Button is a push-to-exit button designed for seamless integration with UniFi Access Hubs. With interchangeable black and white faceplates, robust construction, and a long mechanical lifespan, it provides a reliable solution for secure access systems in commercial and residential settings.
Key Features:
- Versatile Faceplates: Includes both black and white faceplates to match various installation aesthetics.
- Durable Design: Supports up to 1,000,000 clicks for long-lasting reliability.
- Secure Operation: Normal open (NO) contact type rated for 30V DC, 2A.
- UniFi Access Compatibility: Works with UniFi devices such as UA-G2-SK, UA-G2-SK-Pro, EAH-8, UA-Ultra, and UA-Hub-Door.
Applications
- Push-to-exit functionality for secure access control in office buildings, residential complexes, and retail spaces.
- Integration with UniFi Access systems for enhanced door control and monitoring.
Technical Description:
- Mechanical:
- Dimensions: 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5 in)
- Weight: 180 g (6.3 oz)
- Material: Polycarbonate enclosure with metal mounting components
- Faceplate Colors: Black and White
- Hardware:
- Contact Type: (1) Normal Open (NO)
- Contact Rating: 30V DC, 2A
- Mechanical Life: 1,000,000 Clicks
- Environmental:
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 5–90% Non-condensing
- Certifications:
- CE
More Information
MFRPartNum:
UA-Button
