PRODUCT SPECIFICATIONS
Ubiquiti UA-SK-GATE – Gate Access Starter Kit
The Ubiquiti UA-SK-GATE is a comprehensive gate access control solution designed for vehicle entry points. It integrates seamlessly with UniFi Protect AI cameras for advanced License Plate Unlock functionality, providing a secure and intelligent gate access system. With included intercom and PoE++ capabilities, this kit ensures efficient and reliable operation for both residential and commercial applications.
Key Features:
- Complete Gate Access Control: Includes a Gate Hub, Intercom, PoE++ adapter, and (2) 2-wire PoE extenders.
- License Plate Unlock: Works with UniFi Protect AI cameras for automated access.
- Advanced Intercom System: Equipped with a 7' touchscreen, NFC, microphone, and speaker for communication and credential authentication.
- Flexible Installation: Compatible with DIN rail mounting and outdoor use when paired with a waterproof junction box.
- Multiple Inputs and Outputs: Supports gate position, exit requests, and emergency inputs with dry and powered relays for versatile control.
Applications
- Secure and automated vehicle gate access for residential complexes and businesses.
- Integration with AI-powered UniFi Protect cameras for intelligent access control.
- Enhanced communication and credential management in multi-user environments.
Technical Description:

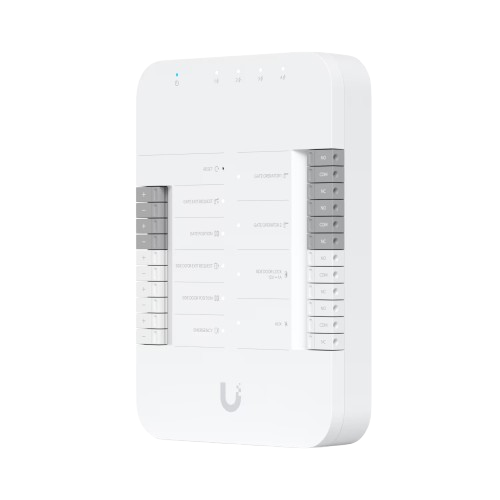

- UA-Hub-Gate
- Mechanical:
- Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1 in)
- Weight: 460 g (1 lb)
- Material: Polycarbonate
- Networking:
- Ports: (5) 10/100/1000 Base-T
- Power:
- Input: PoE++ (50V DC, 1A)
- Output: PoE passthrough (4 ports, 50V DC, Max. 28W)
- Power Consumption: 22W (without PoE output), 50W (with PoE output)
- Environmental:
- Operating Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: 5–90% non-condensing
- Inputs/Outputs:
- Digital Inputs: Gate exit request, gate position, emergency triggers
- Dry Relay Outputs: (2) rated at 30V DC, up to 1A
- Powered Relay Outputs: 12V DC, up to 1A
- UA-Intercom:
- Mechanical:
- Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1 in)
- Weight: 965 g (2.1 lb)
- Material: Aluminum alloy, UV-stabilized polycarbonate
- Display and Camera:
- Screen: 7” capacitive touchscreen (1024 x 600 resolution, 1000 nits)
- Camera: 8 MP, 3264 x 2448, wide FOV (H: 79.4°, V: 97.5°, D: 118.2°)
- Networking and Connectivity:
- Ports: (1) GbE RJ45
- Connectivity: Bluetooth 4.2, NFC (ISO 14443A/B, 15693, MIFARE)
- Mechanical:
- Power:
- Method: PoE
- Max Consumption: 13W
- Environmental:
- Weatherproofing: IP65
- Operating Temperature: -25°C to 60°C (-13°F to 140°F)
- Compatibility:
- UniFi Protect AI Cameras: UVC-AI-Bullet, UVC-AI-DSLR, UVC-AI-Pro, UVC-AI-Theta
- LED Indicators:
- Gate Hub: Status for PoE in/out, input terminals, and relay activity.
- Intercom: Low temperature, floodlight, and keypad LED indicators.
- Mechanical:
More Information
MFRPartNum:
UA-SK-Gate
