PRODUCT SPECIFICATIONS
60 GHz PtP link using 802.11ad with 5 GHz radio for backup. Ideal for high-throughput connectivity with a range of up to 500 m.
1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m

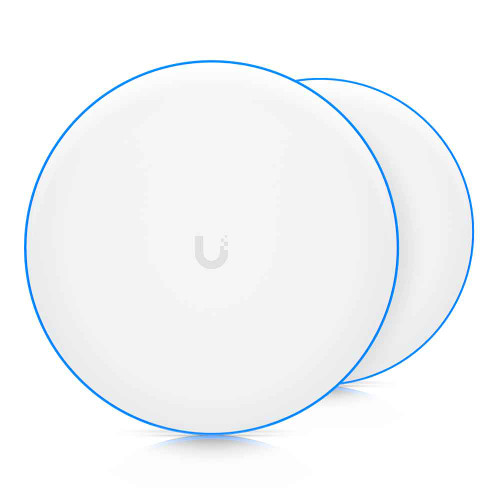

UniFi Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.
Package Contents:
- UniFi Building-to-Building Bridge (x2)
- Ball joint mount (x2)
- Lock ring (x2)
- Metal strap (x2)
- Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
- Power cord (x2)
Technical Description
- Dimensions: 140 x 140 x 90 mm (5.51 x 5.51 x 3.54")
- Weight: 376 g (13.3 oz)
- Antenna Gain
- 2.4 GHz (BLE): 2 dBi
- 5 GHz: 10 dBi
- 60 GHz: 17.2 dBi
- GPS: Yes
- Max. TX Power (EIRP)
- 5 GHz: 25 dBm
- 60 GHz: 32 - 36.5dBm
- 60 GHz Elevation Beamwidth: 30°
- 60 GHz Azimuthal Coverage: ±60°
- Interfaces
- Networking: (1) 10/100/1000 Ethernet Port
- Management: Bluetooth
- Enclosure: UV-Resistant Polycarbonate
- Power Method: 802.3af Supported Passive Power over Ethernet (48V)
- Power Supply: UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included)
- Max Power Consumption: 11W
- Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- Mounting: Pole-Mount (Kit Included) / Wall-Mount (Not Included)
- ESD/EMP Protection: ± 24kV Contact/Air
- Operating Temperature: -40 to 60° C (-40 to 140° F)
- Operating Humidity: 5 to 95% Noncondensing
More Information
MFRPartNum:
UBB-US
