Ubiquiti UNVR-Instant-Kit-US NVR with 4x G5 Turret Ultra 2K Cameras 1TB HDD 6x PoE HDMI Out

Ubiquiti UNVR-Instant-Kit-US Network Video Recorder Instant Kit

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.

Note. Requires connection to a Gateway or Layer 3 switch. EU Store version includes EU power plug only

Technical Specification

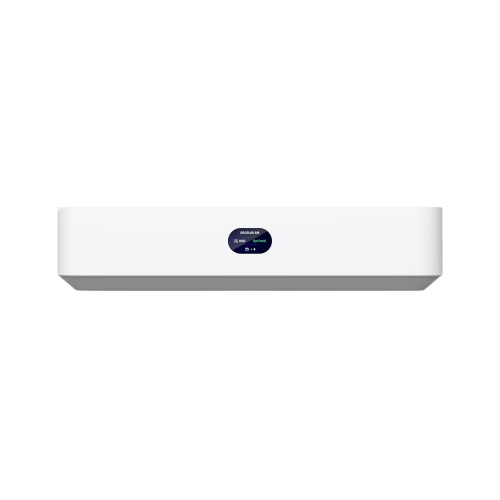

• Network Video Recorder Instant
  • Dimensions: 220 x 220 x 47 mm (8.7 x 8.7 x 1.9')
  • UniFi Application Suite:
    • Protect: ✓
    • Access: ✓
  • Managed Cameras:
    • (15) HD
    • (8) 2K
    • (6) 4K
  • Storage Capacity: (1) 3.5' drive bay
  • Data Protection: ✓
  • Vantage Point: ✓
  • Managed Cameras:
    • (15) HD
    • (8) 2K
    • (6) 4K
  • Storage Capacity: (1) 3.5' drive bay
  • Data Protection: ✓
  • Vantage Point: ✓
  • Networking Interface:
    • (1) GbE RJ45 uplink port
    • (6) GbE PoE RJ45 downlink ports
    • (1) HDMI port (Viewport)
  • Form Factor: Compact Desktop
    Mounting: Wall, Din rail mount (Included)
    Door Access Support: ✓
  • Hard Drive Capacity: (1) 3.5' HDD support
  • Max. Power Budget for Drives: 11W
  • Max. Power Consumption: 9W
  • Power Method: Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
  • Power Supply: AC/DC, Internal, 60W
  • PoE Budget: 40W
  • Max. PoE Wattage per Port by PSE:
    • PoE: 15.4W
  • Voltage Range PoE Mode: 44–57V
  • Processor: Quad-core ARM® Cortex®-A55 at 1.7 GHz
  • Memory: 4 GB
  • Management:
    • Ethernet
    • Bluetooth
  • Display: 1.14' screen
  • Weight: 1.04 kg (2.3 lb)
  • Enclosure Materials: Polycarbonate
  • Mount Material: Polycarbonate
  • LEDs:
    • Ethernet: ✓
    • PoE: ✓
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant: ✓
  • Certifications: FCC, IC, CE, Electrical Safety, UL
• G5 Turret Ultra:
  • Dimensions: Ø90 x 71.2 mm (Ø3.5 x 2.8')
  • IR Night Vision: 30 m (98 ft)
  • Smart Detections (People, Vehicles, Animals): ✓
  • Resolution: 2K
  • Field of View: H: 102.4°, V: 54.9°, D: 120.6°
  • Audio: Microphone
  • Weatherproofing: IP66
  • Tamper Resistance: IK04
  • Mounting:
    • Wall, ceiling mount (Included)
    • Junction box, arm mount (Optional)
  • Networking Interface: 10/100 MbE RJ45 port
  • Video:
    • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
    • Max. Frame Rate: 30 FPS
    • Resolution: 4MP 2688 x 1512 (16:9)
  • Optics:
    • Sensor: 1/2.4' CMOS
    • Lens: Fixed focal length
    • Night Mode: Built-in IR LED illumination and IR cut filter
  • Max. Power Consumption: 4W
  • Supported Voltage Range: 37—57V DC
  • Power Method: PoE
  • Processor: Dual-core Arm® Cortex®-A7 based chip
  • Weight: 330 g (11.6 oz)
  • Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate
  • Mount Material: Polycarbonate
  • Button: (1) Factory-reset
  • Cable:
    • Cable Connector Type: RJ45
    • Cable Diameter: 5 mm (0.2')
    • Cable Length: 30 cm (1 ft)
    • Jacket Material: Polycarbonate
    • Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8')
    • Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
  • Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
  • Ambient Operating Humidity: 0 to 90% noncondensing
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC
• HDD:
  • Dimensions: 147 x 101.6 x 26.1 mm (5.75 x 4 x 1')
  • Hard Disk Form Factor: 3.5-inch
  • Weight: 0.45 kg (0.99 lb)
  • Storage Capacity: 1 TB
  • Power Method: 5V/12V input
  • Management Interface: SATA 6 Gb/s
  • Rotation Speed: 5400 RPM
  • Workload Rating: 180 TB/year
  • Mean Time Between Failure (MTBF): 1,000,000 h
  • Ambient Operating Temperature: 0 to 65° C (32 to 149° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant: ✓
  • Certifications: FCC, CE, UL, TUV, RCM, KC, BSMI
