PRODUCT SPECIFICATIONS
Model: US-24-500W

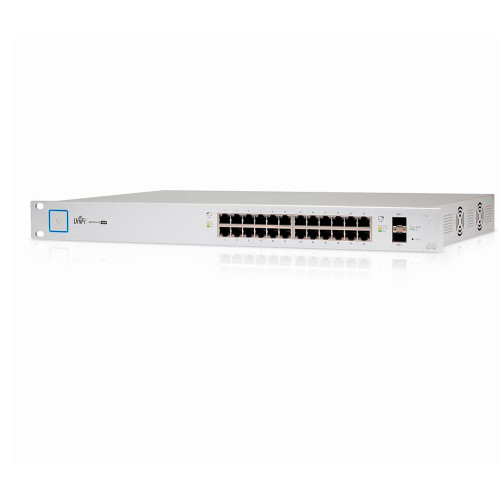

UniFi Switch PoE 24 Ports - Managed PoE+ Gigabit Switch with SFP
Layer 2, PoE switch with (24) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.
The US-24-500W UniFi Managed PoE+ Gigabit 24 RJ45 Port 500W Switch from Ubiquiti offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. It provides a total non-blocking throughput of up to 26 Gb/s.
The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch includes two SFP ports for uplinks of up to 1 Gb/s. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE and 24V passive PoE to power multiple devices on the network.
The switch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. It integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations - all controlled from a single interface.
Powerful Enterprise Switch Model
- The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Optical Fiber Connectivity
- Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Advanced Port Management
- Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
Convenient PoE+ Support
- The UniFi Switch features auto-sensing IEEE 802.3af/at PoE to power multiple devices on the network.
Features:
- (24) GbE PoE+ ports
- (2) 1G SFP ports
- 500W total PoE availability
Dimensions
- 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7")
Weight
- 4.8 kg (10.6 lb)
Technical Description
- General
- Enclosure material: SGCC steel
- Hardware
- Management interface:
- Ethernet In-Band
- (1) RJ45 Serial port Out-of-Band
- Networking interface:
- (24) GbE RJ45 ports
- (2) 1G SFP ports
- PoE interface:
- (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- 24V DC passive PoE (Pins 4, 5+; 7, 8-)
- Total non-blocking throughput: 26 Gbps
- Switching capacity: 52 Gbps
- Forwarding rate: 38.69 Mpps
- Power method: Universal input, 100—240V AC, 50/60 Hz
- Power supply: AC/DC, internal, 500W
- Supported voltage range: 100—240V AC
- Max. power consumption:
- Excluding PoE output: 30W
- Including PoE output: 500W
- Total available PoE: 500W
- Max. PoE wattage per port by PSE:
- 24V Passive PoE: 17W
- PoE+: 34W
- Voltage range PoE mode:
- 24V Passive PoE: 20–27V
- PoE+: 50—57V
- ESD/EMP protection: Air: ± 24kV, contact: ± 24kV
- Sound level*
- Fan level 0: 9.3 dBr
- Fan level 1: 15.2 dBr
- Fan level 2: 17.9 dBr
- Fan level 3: 21.6 dBr
- * Background noise level: 27.5 dBa.
- Shock and vibration: ETSI300-019-1.4 Standard
- Operating temperature: -5 to 40° C (23 to 104° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- Management interface:
- LEDs
- System: Status
- Ethernet:
- PoE
- Speed/Link/Activity
- SFP: Speed/Link/Activity
