Ubiquiti

Part:
USW-Pro-24-PoE

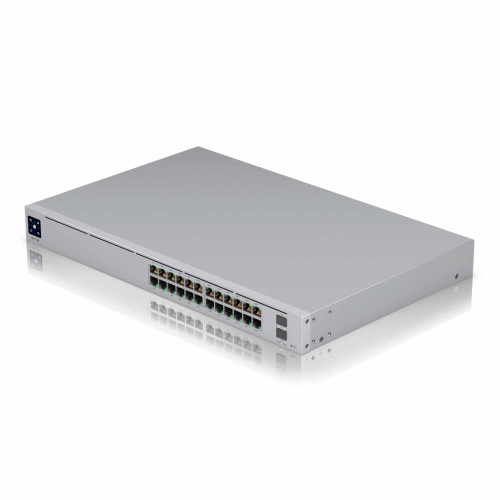

Ubiquiti USW-Pro-24-POE UniFi Switch Pro 24 PoE

$694.99
Condition:
New

PRODUCT SPECIFICATIONS

USW-Pro-24-PoE - A 24-port, Layer 3 switch capable of high-power PoE++ output.

A 24-port, Layer 3 PoE switch.

Managed with the UniFi Network application: Version 5.10.5 and later

Features:

  • (16) GbE, PoE+ RJ45 ports
  • (8) GbE, PoE++ RJ45 ports
  • (2) 10G SFP+ ports
  • (1) USP RPS DC input for power redundancy
  • 400W total PoE availability
  • 400W total PoE availability
  • DC power backup-ready
  • Layer 3 switching
  • Near-silent cooling

Dimensions

  • 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")

Weight

  • Without mounting brackets: 4.3 kg (9.5 lb)
  • With mounting brackets: 4.4 kg (9.7 lb)

Technical Description

  • Mechanical
    • Enclosure material: SGCC steel
  • Hardware
    • Management interface: Ethernet In-Band
    • Networking interface:
      • (24) GbE RJ45 ports
      • (2) 1/10G SFP+ ports
    • PoE interface:
      • (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
      • (8) 60W PoE++
      • PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
    • Total non-blocking throughput: 44 Gbps
    • Switching capacity: 88 Gbps
    • Forwarding rate: 65.472 Mpps
    • Power method:
      • Universal input, 100—240V AC, 50/60 Hz
      • USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A
    • Power supply: AC/DC, internal, 450W
    • Supported voltage range: 100—240V AC
    • Max. power consumption: 50W (Excluding PoE output)
    • Total available PoE: 400W
    • Max. PoE wattage per port by PSE:
      • PoE+: 32W
      • PoE++: 64W
    • Voltage range PoE mode:
      • PoE: 44—57V
      • PoE+: 50—57V
    • ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
    • LCM display: (1) 1.3" touchscreen
    • Button: Factory reset
    • Shock and vibration: ETSI300-019-1.4 Standard
    • Operating temperature: -5 to 40° C (23 to 104° F)
    • Operating humidity: 10 to 90% noncondensing
    • Certifications: CE, FCC, IC
  • LEDs
    • System: Status
    • Ethernet: PoE
    • Speed/link/activity
    • SFP+: Link/activity
    • RPS: Status
  • Application Requirements
    • UniFi Network: Version 5.10.5 and later

More Information

MFRPartNum:
USW-Pro-24-PoE
Datasheet:
