PRODUCT SPECIFICATIONS
Layer 2, PoE switch with (24) GbE RJ45 ports, including (16) PoE+ ports, and (2) 1G SFP ports.

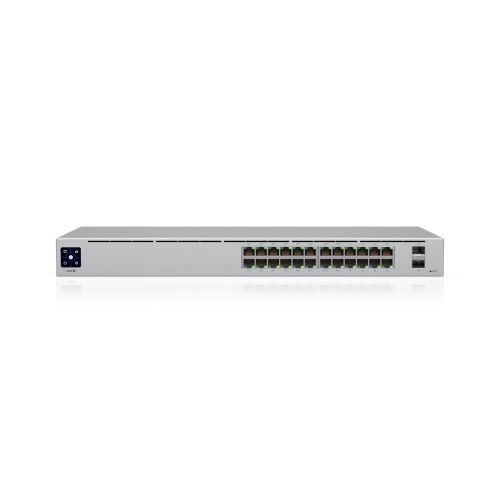

The Switch 24 PoE (USW 24 PoE) is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, PoE+ ports, and (2) 1G SFP ports. The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, with its 7.9" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network Web Application and UniFi Network Mobile App.
Features:
- (1) 1.3" LCM color touchscreen with AR switch management
- (16) GbE, PoE+ RJ45 ports
- (8) GbE RJ45 ports
- (2) 1G SFP ports
- 95W total PoE supply
- Fanless, silent cooling
Technical Description
- Specifications
- Dimensions: 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
- Weight: Without mounting brackets: 3 kg (6.6 lb)
- With mounting brackets: 3.1 kg (6.8 lb)
- Enclosure material: SGCC steel
- Hardware
- Management interface: Ethernet In-Band
- Networking interface:
- (24) GbE RJ45 ports
- (2) 1G SFP ports
- PoE interface: (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- Total non-blocking throughput: 26 Gbps
- Switching capacity: 52 Gbps
- Forwarding rate: 38.69 Mpps
- Power method: Universal input, 100—240V AC, 50/60 Hz
- Power supply: AC/DC, internal, 120W
- Supported voltage range: 100—240V AC
- Max. power consumption: 25W (Excluding PoE output)
- Total available PoE: 95W
- Max. PoE wattage per port by PSE: PoE+: 32W
- Voltage range PoE mode:
- PoE: 44—57V
- PoE+: 50—57V
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Shock and vibration: ETSI300-019-1.4 Standard
- Operating temperature: -5 to 40° C (23 to 104° F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
- LEDs
- System: Status
- Ethernet: PoE
- Speed/link/activity
- SFP: Link/activity
- Application Requirements
- UniFi Network: Version 7.2.94 and later
