Ubiquiti

Part:
UVC-G5-Dome-3

Ubiquiti UVC-G5-Dome-3 Camera Pack G5 Dome 4MP PoE Surveillance Cameras Night Vision (3 Pack)

$490.95
$505.95
Condition:
New

PRODUCT SPECIFICATIONS

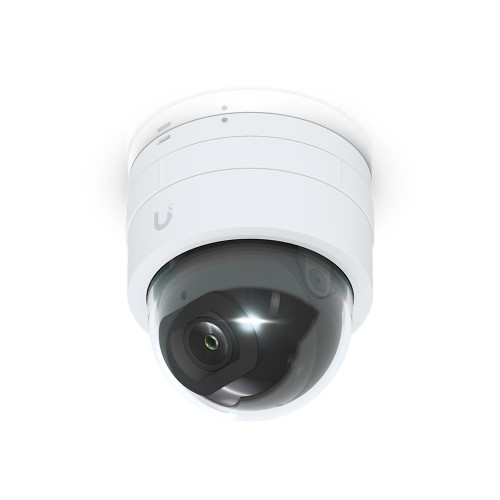

Ubiquiti UVC-G5-Dome-3 Camera G5 Dome (3-Pack)
The Ubiquiti UVC-G5-Dome-3 Camera G5 Dome (3-Pack) is a high-performance, PoE-powered surveillance solution designed for both indoor and outdoor applications. With 4MP resolution, night vision, and a wide-angle lens, it ensures clear, detailed coverage in various environments. The vandal-resistant and weatherproof enclosure adds durability, making it ideal for long-term use in exposed settings. Each camera is seamlessly integrated into the UniFi Protect ecosystem for centralized monitoring and management.

The Ubiquiti UVC-G5-Dome-3 camera pack provides robust, reliable surveillance with advanced features for any environment, delivering exceptional value for security solutions.

Key Features

  • High-Resolution Imaging: 4MP resolution with up to 24 FPS for crisp, detailed videos.
  • Night Vision: Built-in infrared LEDs and light sensors for clear nighttime surveillance.
  • Wide Viewing Angle: 102.4° (H), 71.4° (V), 134.3° (D) for expansive coverage.
  • Durable Construction: IPX4 weatherproof and IK08 vandal-resistant enclosure.
  • Integrated Audio: Built-in microphone and speaker with adjustable settings.
  • Flexible Mounting Options: Wall or ceiling mounting for versatile installation.
  • PoE Support: Simplified cabling with Power-over-Ethernet.

Applications

  • Indoor Security: Suitable for offices, schools, retail spaces, and homes.
  • Outdoor Monitoring: Weatherproof design for entryways, courtyards, and parking areas.
  • Wide-Area Coverage: Ideal for monitoring open spaces with expansive viewing angles.

Technical Specifications

  • Mechanical
    • Dimensions: Ø109.2 x 64.5 mm (Ø4.3 x 2.5')
    • Weight:
      • Without Mount: 370 g (13.05 oz)
      • With Mount: 390 g (13.76 oz)
    • Enclosure Materials: Aluminum alloy, polycarbonate, hard-coated dome.
    • Mounting materials: Polycarbonate, stainless steel.
    • Weatherproofing: IPX4.
    • Impact Resistance: IK08-rated.
  • Optics
    • Sensor: 4 MP CMOS.
    • Lens: Fixed focal length.
    • View Angle:
      • Horizontal: 102.4°
      • Vertical: 71.4°
      • Diagonal: 134.3°
    • Night Mode: Built-in light sensor and IR LED illumination with IR cut filter.
  • Video
    • Compression: H.264.
    • Resolution: 2688 x 1512 (16:9).
    • Max Frame Rate: 24 FPS.
    • Image Settings: Adjustable brightness, contrast, sharpness, saturation, and noise reduction.
  • System
    • Processor: Quad-core Arm® Cortex®-A53-based chip.
    • Memory: 512 MB.
    • Networking Interface: GbE RJ45 port.
    • Flash Memory: 256 MB.
    • Max Power Consumption: 5W.
    • Power Method: PoE.
    • Supported Voltage Range: 44 to 57V DC.
    • Operating Temperature: -20 to 40° C (-4 to 104° F).
    • Operating Humidity: 0 to 90% non-condensing.
    • Certifications: FCC, IC, CE.
  • Audio
    • Microphone: Yes (can be disabled via software).
    • Speaker: Yes.
  • Software
    • Management: UniFi Protect via UniFi OS application.
    • Mobile Apps: UniFi Protect for iOS and Android.
  • Package Includes
    • (3) Ubiquiti G5 Dome Cameras
    • Mounting hardware for wall or ceiling installation

More Information

MFRPartNum:
UVC-G5-Dome-3
