PRODUCT SPECIFICATIONS

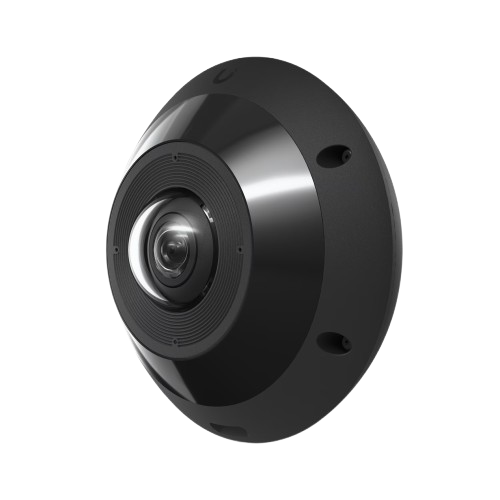

Ubiquiti UVC-G6-Pro-360-W
All-weather, vandal-resistant 12MP PoE camera with panoramic 360° coverage, digital pan-tilt-zoom functionality, and smart IR functionality.
Key Features
- Ultra-wide 360° viewing angle
- Microphones
- 1/1.6' 12MP image sensor
- IR LED 15 m (50 ft) IR night vision
- Multi-TOPS AI engine
- Speaker
- Tamper resistant IK10 rated
- Weatherproof IP66 rated
- Ceiling, wall mount
- Overview:
- Dimensions: Ø147 x 65.5 (Ø5.8 x 2.6')
- IR Night Vision:
- 15m (50 ft)
- Smart IR (4x controllable zones)
- Smart Detections (People, Vehicles, Animals): ✓
- Resolution: 12MP
- Field of View: H: 180°, V: 180°, D: 180°
- Audio: Two-way audio
- Weatherproofing: IP66
- Tamper Resistance: IK10
- Mounting:
- Surface Mount (Included)
- AI 360 Junction Box, Camera Dual Mount, Arm Mount (Optional)
- Performance:
- Networking Interface: 10/100 MbE RJ45 port
- Video:
- Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Max. Frame Rate: 24 FPS
- Resolution: 12MP 3504 x 3504 (1:1)
- Optics:
- Sensor: 1/1.6' 12MP
- Lens: Fisheye lens
- Night Mode: Built-in IR LED illumination and IR cut filter
- Hardware:
- Max. Power Consumption: 7.14W
- Supported Voltage Range: 37—57V DC
- Power Method: PoE+
- Processor: Quad-core Arm® Cortex®-A53 based chip
- Weight: 610 g (1.3 lb)
- Enclosure Material: Aluminum alloy, polycarbonate
- Mount Material: Polycarbonate
- Expansion Slot: MicroSD card
- Button: (1) Factory-reset
- Ambient Operating Temperature: -30 to 50º C (-22 to 122º F)
- Ambient Operating Humidity: 0 to 90% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC
More Information
MFRPartNum:
UVC-G6-Pro-360-W
