PRODUCT SPECIFICATIONS

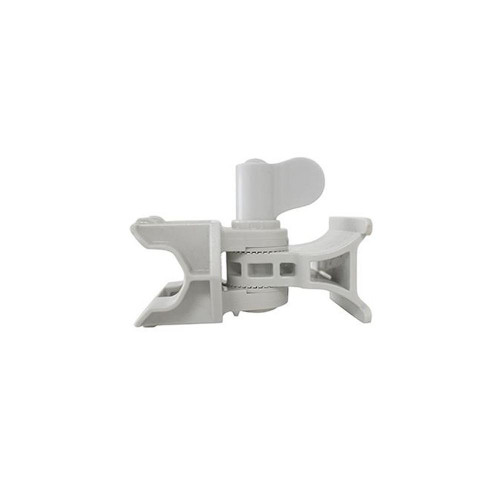

Cambium Networks N000900L022A Adjustable Pole Mounting Bracket
The Cambium Networks N000900L022A is an adjustable pole mounting bracket for compatible outdoor wireless radios. It supports ePMP Force 180, ePMP Force 300-16 and cnWave V1000 installations, providing a mounting accessory for positioning the radio at the installation site.
Flytec offers this part as a spare for the bracket supplied with the ePMP Force 180. It is useful when replacing a missing or damaged bracket or preparing a compatible radio for installation. For cnWave V1000 deployments, the bracket provides elevation adjustment when the client node is mounted on a pole.
Key Features
- Original Cambium Networks accessory, model N000900L022A.
- Adjustable pole mounting design for compatible radios.
- Manufacturer-confirmed support for ePMP Force 180 and Force 300-16.
- Supports elevation adjustment for the cnWave V1000 client node.
- Mechanical accessory that requires no electrical power.
- Radio sold separately.
Mounting and Alignment
The adjustable bracket helps installers position a supported radio during installation. Select the pole and clamp arrangement according to the installation instructions for the specific radio.
For the cnWave V1000, Cambium documents a pole diameter range of 25–70 mm (1–2.75 inches). The adjustable bracket does not include a clamp; the clamp supplied with the V1000 can be used. Do not assume that clamp arrangements are identical across supported radio models.
Compatibility
Compatibility depends on the radio's mechanical mounting interface and Cambium's approved mounting arrangement. This bracket does not provide power, PoE, Ethernet connectivity or wireless functionality.
Ideal Applications
- Replacing an ePMP Force 180 mounting bracket.
- Pole mounting compatible ePMP Force 300-16 radios.
- Adding elevation adjustment to cnWave V1000 pole installations.
- Maintaining spare mounting accessories for WISP and enterprise wireless installations.
Compatible Products
The N000900L022A requires a supported Cambium radio mounting interface and the appropriate pole clamp arrangement. The products below are identified as Force 180 or Force 300-16 variants on Flytec Computers, and Cambium lists both radio families for this bracket.
- Cambium Networks C058900C072A ePMP Force 180 5 GHz Integrated Radio (FCC) – Force 180 model supported by Cambium's bracket selection guide.
- Cambium Networks C050900C171A ePMP Force 180 5 GHz Integrated Radio (RoW) – Force 180 model supported by Cambium's bracket selection guide.
- Cambium Networks C058910C112A ePMP Force 300-16 5 GHz Integrated Radio (FCC) – Force 300-16 model supported by Cambium's bracket selection guide.
- Cambium Networks C050910C111A ePMP Force 300-16 5 GHz Integrated Radio (RoW) – Force 300-16 model supported by Cambium's bracket selection guide.
- Cambium Networks cnWave V1000 Client Node – Cambium explicitly identifies N000900L022A as its optional adjustable pole mount for elevation adjustment.
Important: This is a mechanical mounting accessory. It does not establish electrical, PoE or wireless interoperability between the listed radios. Follow the installation instructions for the exact device. Cambium states that the adjustable mount does not include a clamp for V1000 installations.
Technical Specifications
General
- Brand: Cambium Networks
- Model / MPN: N000900L022A
- Product Type: Adjustable pole mounting bracket
- Function: Mechanical mounting and positioning of supported radios
- Supported Products: ePMP Force 180, ePMP Force 300-16 and cnWave V1000
Mounting
- Mounting Location: Pole
- Adjustment: Adjustable positioning; elevation adjustment explicitly documented for V1000
- V1000 Pole Diameter Range: 25–70 mm (1–2.75 inches), according to Cambium's cnWave Quick Start Guide
- V1000 Clamp Requirement: Clamp not included with the adjustable mount; use the clamp supplied with the V1000 or an appropriate customer-supplied clamp as instructed by Cambium
Physical Specifications
- Bracket-Only Dimensions: Not reliably confirmed
- Bracket-Only Weight: Not reliably confirmed
- Material: Not reliably confirmed
- Numerical Adjustment Range: Not reliably confirmed
- Bracket-Specific Operating Temperature: Not reliably confirmed
- Bracket-Specific IP Rating: Not reliably confirmed
Supply Details
- Product Supplied: N000900L022A adjustable pole bracket
- Radio Included: No
- Complete Fastener Inventory: Not reliably confirmed
Download Cambium Networks Mounting Bracket Selection Guide for N000900L022A (PDF) Download Cambium Networks cnWave Quick Start Guide with V1000 N000900L022A Mounting Instructions (PDF)
