TP-DCDC-2456G-VHP

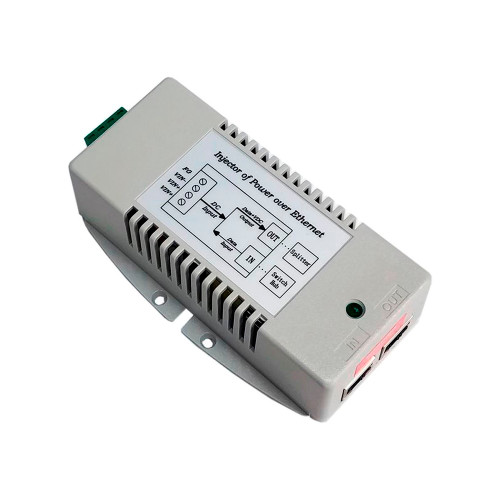

Tycon 18-36VDC IN. 56V 70W 4 Pair Hi Power Passive PoE OUT. DC to DC Converter and Gigabit Passive PoE Injector

$123.45
$129.95
Condition:
New

PRODUCT SPECIFICATIONS

The Gigabit compatible TP-DCDC-2456G-VHP is a special very high power DC to DC converter / PoE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires.

They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

Features

  • Input Voltage 24VDC (18-36VDC)
  • 8 wire 56VDC Passive PoE Output
  • High Power Output to 70W
  • Dual DC Inputs for Connecting 2 Power Sources
  • Gigabit Data Thruput
  • Low self consumption power (<2W)
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range
  • I.T.E. Power Supply, UL Listed

Applications

  • 24VDC Remote Power Systems
  • Ubiquiti airFiber Antennas
  • High PoE Compatible Security Cameras

Dimensions:

  • 125 x 75 x 38mm (4.9 x 3 x 1.5in)

Weight:

  • 255g (9oz)

Technical Description

  • Input Voltage: +/- 18VDC to 36VDC
  • DC Input Connector: Removeable Screw Type Compression Wire Terminal (12 AWG Max)
  • POE Specification: Passive ( 8 Wire , 4 Pair ) 1245 V+, 3678 V-
  • Output Voltage (+/-2.5%): 56VDC
  • Data in & Data/POE Output Connector: RJ45 (Shielded)
  • Output Current (max): 1.25A Total
  • Output Power (max): 70W Total - Note: Output power up to 70W at 40C. Derate by 1W for every 1 Deg C above 40C ambient. Example: 60W at 50C
  • Self-Consumption Power: 2W
  • Efficiency (min): 80%
  • Line Regulation, Ripple, Noise: 1%
  • Load Regulation: 5%
  • EMC Standards: FCC Class B EN55022 Class B
  • Safety Standards: CSA 22.2 &TUV EN60950
  • Operating Temperature: -40 to +70°C (-40 to +158°F)
  • Operating Humidity (RH): 5% - 90%
  • MTBF (Mean Time Between Failures): 55,489 Hours
  • Storage Temperature: -40 to +80°C (-40 to +176°F)
