PRODUCT SPECIFICATIONS

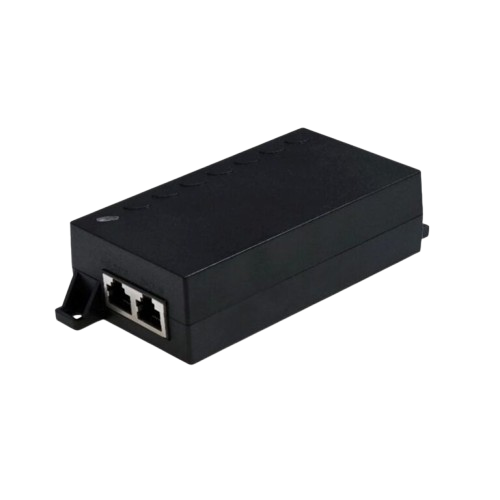

Tycon TP-POE-GD-BT90 Gigabit 802.3bt 90W PoE++ Injector
The TP-POE-GD-BT90 is a durable, high-power Gigabit Ethernet PoE++ injector that lets you power 802.3bt or 802.3at PoE powered devices.
Built for indoor use or outdoor use inside a weatherproof enclosure, the units have a metal housing. They operate reliably in temperatures from -20°C to +60°C.
The three green LED indicators show Input power status and connected device status showing if powered via Mode A (Pins 1,2,3,6) or Mode B (Pins 4,5,7,8) or both.
Note: 802.3bt devices are backward compatible with 802.3at specs so they can safely power 802.3at devices in addition to powering 802.3bt. You can upgrade your PoE injectors now and future proof your installation.
Key Features
- 100~240VAC Auto-Ranging Input
- 802.3at 30W PoE+ OUT
- 10/100/1000Mb Compatible
- Easy Plug and Play Operation
- Auto Data Passthrough
- Wall Mount or Desktop
- Wireless Equipment
- IP Telephone
- Security Applications
- Sensor Equipment
- PoE Lighting
- IP Cameras
Technical Specification
- AC Input: 100-240VAC 50/60Hz 1A Max
- Data Speeds: 10/100/1000Mb
- PoE Output: 802.3bt Class 8, POE++
- PoE Output Pinout: 3,6,4,5(+) 1,2,7,8(-) Up to 90W
- PoE Output Voltage: 54 VDC
- Protections: Over Current, Overload, Over Voltage, Anti-Interference
- Operating Temperature: -4°F to 140°F (-20°C to +60°C)
- Operating Humidity: 0 to 80% RH Non-Condensing
- Ethernet Connectors: Shielded RJ45, EIA 568A and 568B
- AC Connector: IEC C14
- AC Power Cord Length: 1m
- Size: 5.9 x 3 x 1.6” (150 x 75 x 41mm)
- Weight: 17oz (485g)
