PRODUCT SPECIFICATIONS
Looking for an alternative? Complete your single-mode fiber setup with the Iuron IU-CEN-FPC-LCUPC-LCUPC-OS2-D-1 (1 meter), Iuron IU-CEN-FPC-LCUPC-LCUPC-OS2-D-3 (3 meters), Iuron IU-CEN-FPC-LCUPC-LCUPC-OS2-D-5 (5 meters), Iuron IU-CEN-FPC-LCUPC-LCUPC-OS2-DB-1 (1 meter, Grade B, 0.12 dB insertion loss), Iuron IU-CEN-FPC-LCUPC-LCUPC-OS2-DB-3 (3 meters, Grade B, 0.12 dB insertion loss), or Iuron IU-CEN-FPC-LCUPC-LCUPC-OS2-DB-5 (5 meters, Grade B, 0.12 dB insertion loss). All are OS2 duplex fiber patch cables with LC UPC connectors. They can provide the fiber connection for a compatible Ubiquiti UACC-OM-SM-10G-D-2 setup, but they are cables rather than replacements for the 10G optical modules.

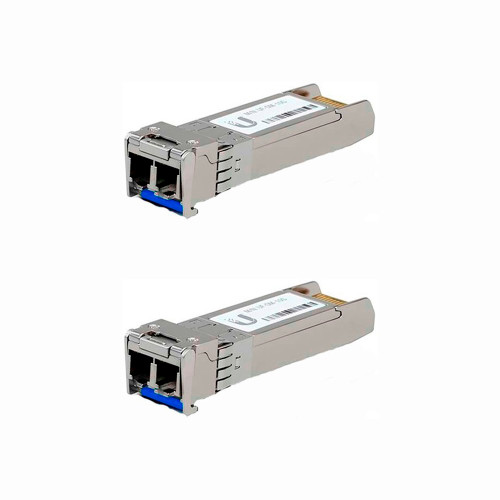

Ubiquiti UACC-OM-SM-10G-D-2
Single-mode, duplex, fiber transceiver module. The 10 Gbps Single-mode Optical Module is a duplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers.
Key Features
- 10 Gbps throughput
- Duplex LC connector
- Supports connections up to 10 km*
- *Fiber cable is not included.
- Supported Media: Single-Mode Fiber
- Connector Type: (2) LC
- BiDi: No
- TX Wavelength: Blue Latch: 1310 nm
- RX Wavelength: Blue Latch: 1310 nm
- Data Rate: 10 Gbps
- Max. Power Consumption: 1W
- Cable Distance: 10 km
- Operating Temperature: 0 to 70° C (32 to 158° F)
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the ber optic cable or SFP module while converters are powered.
