PRODUCT SPECIFICATIONS

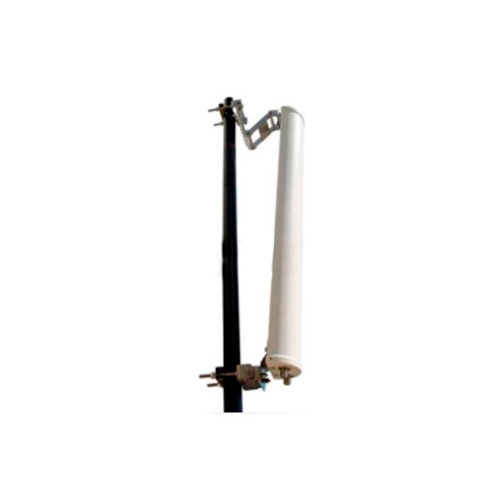

5 GHz, 120º, 19 dBi or 90º, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
Carrier-class sector antenna that was designed to seamlessly integrate with Rocket radios. Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
- 2x2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Compatible with Rocket Prism 5AC
Technical Description
- Specifications
- Dimensions (mm): 700 x 135 x 73 mm (27.6 x 5.3 x 2.9")
- Weight: 5.9 kg (13 lb)
- Frequency Range: 5.15 - 5.85 GHz
- Gain: 18.6 - 19.1 dBi
- HPOL Beamwidth: 123° (6 dB)
- VPOL Beamwidth: 123° (6 dB)
- Electrical Beamwidth: 4°
- Electrical Downtilt: 2°
- Max. VSWR: 1.5:1
- Wind Survivability: 200 km/h (125 mph)
- Wind Loading: 89 N @ 160 km/h (20 lbf @ 100 mph)
- Polarization: Dual-Linear
- Cross-pol Isolation: 28 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
More Information
MFRPartNum:
AM-5G19-120
