PRODUCT SPECIFICATIONS

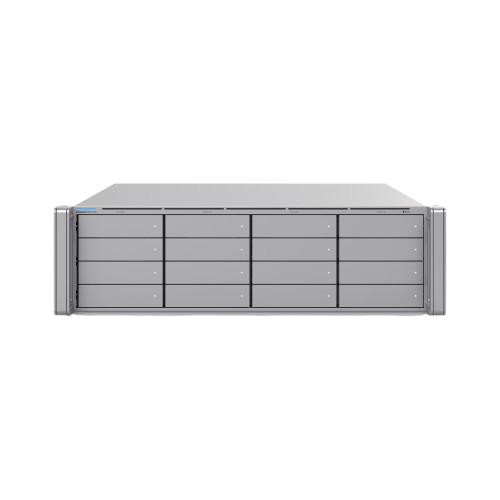

Ubiquiti ENVR Enterprise Network Video Recorder
3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.
Key Features
- Status LED
- Data protection With RAID storage technology
- Reset button
- Bezel accessory port
- (16) 3.5 HDD/SSD support
- 10 GbE RJ45 port
- (2) 10G SFP+ uplink ports
- (2) hot-swap PSUs for power redundancy
Technical Specification
- Overview
- Dimensions: 481.4 x 480 x 132 mm (19 x 18.9 x 5.2')
- UniFi Application Suite:
- Protect
- Access
- Managed Cameras:
- (210) HD
- (140) 2K
- (70) 4K
- Storage Capacity: (16) 3.5' drive bays
- Data Protection
- Vantage Point
- Networking Interface
- (2) 10G SFP+
- (1) 10 GbE
- Power Redundancy
- Form Factor: Rack Mount (3U)
- Door Access Support
- Hardware
- Hard Drive Capacity: (16) 2.5/3.5' HDD / SSD support
- Max. Power Budget for Drives: 310W
- Max. Power Consumption: 410W
- Power Method: (2) AC input, 100-240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
- Power Supply: Hot-swappable 550W CRPS
- Processor: MV-CN10208-A0-CF240AA-C250-SCP
- Memory: 32 GB
- Management: Ethernet
- Display: Bezel (Optional)
- Weight:
- Without rails: 16.6 kg (36.6 lb)
- With rails: 19.5 kg (43.0 lb)
- Enclosure Material: SGCC steel
- Mount Material: Aluminum
- Slide Rails:
- 482.6 mm (19') four-post racks
- Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
