PRODUCT SPECIFICATIONS
Model: ETH-SP

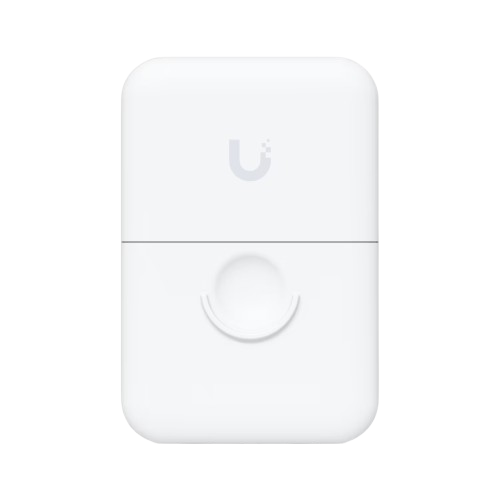

The Ubiquiti Networks ETH-SP Ethernet Surge Protector is used for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. The installation of the ETH-SP with the airMAX devices provides an additional layer of protection to the network. The ETH-SP Protector is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gb/s. It features 2 passive, surge-protected RJ45 connections that provide maximum equipment compatibility.
- Easy plug & play installation
- Protects outdoor Ethernet devices
- Compatible with 10/100/1000 Mb/s networks
|
Interface Connector |
2 x RJ45 female connector |
|
ESD/EMP Protection |
Absorbing transient current with response to surge voltage from 100 V/s to 1 kV/μs |
|
DC Voltage |
90 V @ 100 V/s (Spark-over) |
|
Peak Impulse Current |
700 V @ 1 kV/μs |
|
Discharge |
5 kA (maximum) |
|
Insulation Resistance |
1 GΩ @ 50 V (maximum) |
|
Capacitance |
1.0 pF @ 1 MHz (maximum) |
|
Data Line Protection |
RJ45 10/100/1000 Ethernet |
|
PoE |
IEEE 802.3af support |
|
Shock and Vibration |
ETSI300-019-1.4 Standard certified |
|
Operating Temperature |
-22 to 149°F (-30 to 65°C) |
|
Operating Humidity |
10 to 90% non-condensing |
|
Dimensions |
3.6 x 2.4 x 1.3" (9.1 x 6.1 x 3.2 cm) |
|
Weight |
2.8 oz (80.0 g) |
