PRODUCT SPECIFICATIONS

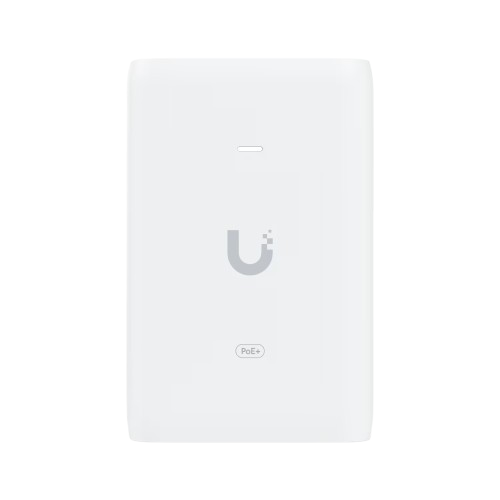

Ubiquiti U-PoE PoE Adapter (15W)
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Key Features
- Delivers up to 15W of PoE
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE output
- LED indicator for status monitoring
- Compatibility: UK-Ultra,U6-PLUS, U6-IW, U6-Mesh, U6-Pro, U6-Lite, UAP-AC-IW, UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra, UVC-G5-Pro, UVC-G5-Flex, UVC-G5-Bullet, UVC-G5-Dome, UVC-AI-Pro, UVC-AI-DSLR, UVC-AI-360, UVC-AI-Theta-Pro, UVC-AI-Theta, UVC-AI-Theta-Hub, UVC-G4 Doorbell Pro PoE Kit, UVC-G4-DOME, UVC-G4-Bullet, UVC-G4-Pro and UVC-G3-FLEX
- Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3')
- Weight: 100 g (3.5 oz)
- Output Voltage: 48V DC @ 0.32A
- Rated Voltage: 100—240V AC @ 50/60Hz
- Gigabit LAN Port: ✓
- 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
- AC Connector: IEC-320 C6
- Clamping Protection: 11V Data, 60V Power
- Data In / PoE: RJ45 Shielded Socket
- Input Current: 500mA Max.
- Inrush Current: <100A peak at 25°C
- Efficiency: 84.25+%
- Switching Frequency: 65 kHz
- Output Ripple: 200mV pp
- Line Regulation: ≤ 3%
- Load Regulation: ≤ 5%
- Max. Surge Discharge: 1500A (8/20 μs) power
- Peak Pulse Current: 36A (10/1000 μs) data
- Response Time: <1 ns
- Shunt Capacitance: <5 pF data
- Surge Protection: Difference and common mode
- Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 10 to 95% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, UL, CCC
More Information
MFRPartNum:
U-PoE
