PRODUCT SPECIFICATIONS

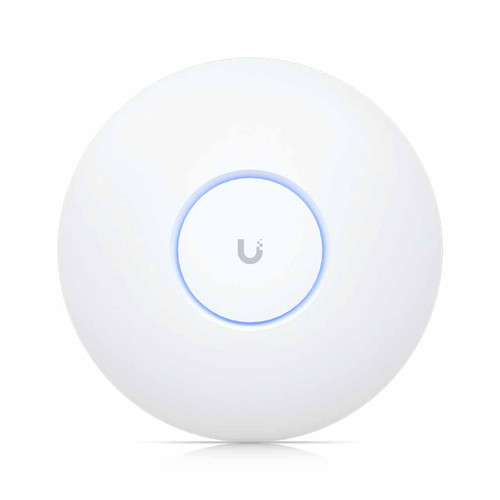

U7-Pro - The Perfect Home for your ONU
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Multi-Link Operation (MLO) capability to be provided via software update in February 2024.
Note. 6 GHz operation is supported in these countries.
Features
- WiFi 7 tri-radio with 6 GHz
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Dimensions
- Ø206 x 46 mm (Ø8.1 x 1.8")
Weight
- 680 g (1.5 lb)
Compatibilities
Technical Description
- Mechanical
- Enclosure materials: Polycarbonate, metal
- Mount material: Mounting bracket: stainless steel (SUS304)
- Backing plate: galvanized steel (SGCC)
- Hardware
- Networking interface: (1) 1/2.5 GbE RJ45 port
- Management interface: Ethernet:
- Power method: PoE+
- Power supply: UniFi PoE switch
- Supported voltage range: 44—57V DC
- Max. power consumption: 21W
- Max. TX power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: 23 dBm
- MIMO
- 2.4 GHz: 2 x 2
- 5 GHz: 2 x 2
- 6 GHz: 2 x 2
- Throughput rate
- 2.4 GHz: 688 Mbps
- 5 GHz: 2882 Mbps
- 6 GHz: 5765 Mbps
- Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 6 dBi
- 6 GHz: 5.8 dBi
- LEDs: White/blue
- Button: Factory reset
- Mounting: Wall/ceiling (Included)
- Operating temperature: -30 to 60° C (-22 to 140° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- Software
- WiFi standards: 802.11a/b/g/n/ac/ax/be
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- Application Requirements
- UniFi Network: Version 8.0.26 and later
- UniFi OS: Version 3.2 and later
More Information
MFRPartNum:
U7-PRO
