PRODUCT SPECIFICATIONS
Ubiquiti UA-G3-SK G3 Starter Kit
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Apple Touch Pass for modern, secure access control.*
* 10 free 1-year Apple Touch Passes included.
Key Features:
- PoE out for readers
- 12V and dry switch
- Exit request input terminal
- Lock terminal (12V and dry switchable)
- Input for door position sensors
- DIN rail mount
- GbE PoE++ in RJ45 port
- (2) GbE PoE out RJ45 ports
Technical Specification:
- Overview:
- In the Box:
- (1) Door Hub Mini
- (1) G3 Reader
- (2) Pocket Keyfobs
- 10 free 1-year Apple Touch Passes included
- In the Box:
- Door Hub Mini:
- Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1')
- Supported Doors: 1
- Input Terminals:
- (1) Door Exit Request
- (1) Door Position
- Power Method:
- PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Weight: 190 g (6.7 oz)
- Enclosure Material: Polycarbonate, metal
- Mounting: DIN-rail (Included)
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Networking Interface: (3) GbE RJ45 ports
- PoE Interface:
- (1) PoE++ input, 50V DC, 1A
- (2) PoE outputs, total 31W
- Max. Power Consumption:
- 19W (Without PoE output)
- 50W (With PoE output)
- Digital Input: Request to exit, door position sensor
- Dry Output Relay: 30V DC, 1A
- Wet Output Relay: 12V DC, 1A
- LEDs: White/blue Learn More
- Button:
- (1) Factory-reset
- (1) Dry/Wet switch
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

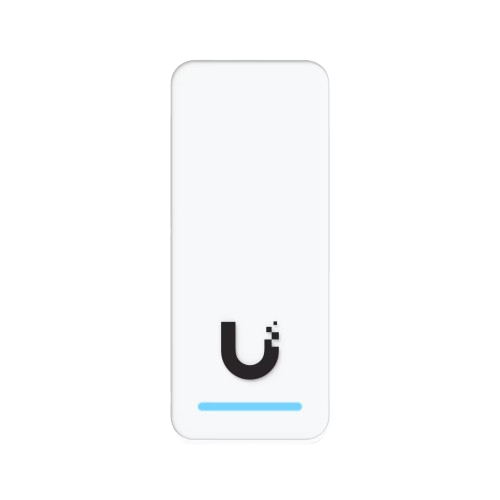

- G3 Reader:
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4')
- NFC Card & Keyfob Access
- Touch Pass
- Mobile Unlock
- Handwave Request to Exit
- Weatherproofing: IP55
- Weight: 82 g (2.9 oz)
- Enclosure Material: Polycarbonate, glass
- Mount Material: Aluminum alloy
- Mounting:
- In-wall, gang box (Included)
- Junction box (Optional)
- Indoor and Outdoor Use
- Max. Power Consumption: 5W
- Supported Voltage Range: 48V DC
- ESD/EMP Protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs: R/G/B/W Learn More
- Button: (1) Factory-reset
- NFC Frequency: 13.56 MHz
- NFC Read Range: < 30 mm (1.18'')
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Pocket Keyfob:
- Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29')
- Weight: 16 g (0.56 oz)
- Enclosure Material: Polycarbonate, stainless steel, silicone rubber
- Weatherproofing: IP54
- Ambient Operating Humidity: 10 to 90% noncondensing
- Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
- NFC Frequency: 13.56 MHz
- NFC Technology:
- ISO/IEC 14443 Type A
- MIFARE DESFire EV3 4K
- UniFi Access Proprietary Security Protocol
- Certification: CE
More Information
MFRPartNum:
UA-G3-SK
