PRODUCT SPECIFICATIONS

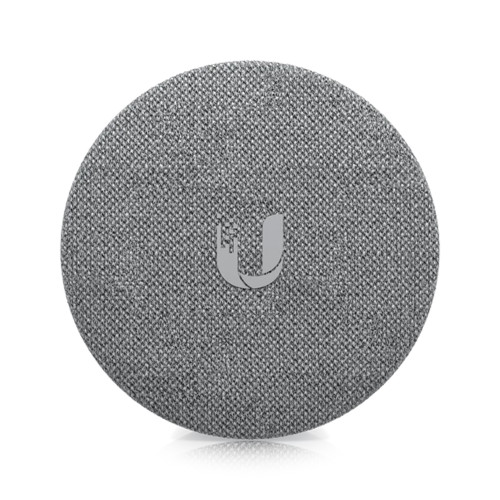

Ubiquiti UACC-CHIME-POE – Smart Chime for UniFi Doorbell and Access Systems
The Ubiquiti UACC-CHIME-POE is a PoE-powered notification device designed for seamless integration with UniFi doorbells and access systems. With a powerful 80dB speaker, multiple mounting options, and plug-and-play functionality, it enhances notification and alerting capabilities for both residential and commercial installations.
Key Features:
- Loud and Clear Alerts: Up to 80dB speaker output ensures notifications are easily heard.
- Plug-and-Play PoE: Connects and Power via PoE for simple installation.
- Wide Compatibility: Works with UniFi devices including UVC-G4 Doorbell Pro, UA-G2-Pro, UA-Intercom, and more.
- Flexible Mounting: Includes in-wall and on-wall mounting options to suit various setups.
- Smart Integration: Operates seamlessly with UniFi Protect and UniFi Access systems.
Applications
- Enhances notifications for UniFi doorbell installations in homes and businesses.
- Provides audible alerts for secure access hubs in office buildings.
- Ideal for installations requiring flexible mounting and reliable PoE connectivity.
Technical Description:
- Mechanical:
- Dimensions:
- Device: Ø62 x 54 mm (Ø2.5 x 2.1 in)
- In-wall Mount: Ø89 x 63.1 mm (Ø3.5 x 2.5 in)
- On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8 in)
- Weight:
- Device: 158 g (5.6 oz)
- In-wall Mount: 91 g (3.2 oz)
- On-wall Mount: 28 g (1 oz)
- Material: Polycarbonate, aluminum alloy (device); Polycarbonate, zinc alloy (mounts)
- Dimensions:
- System:
- Networking Interface: 10/100 MbE Port
- Power Method: PoE (44–57V DC)
- Max Power Consumption: 3W
- ESD/EMP Protection:
- Air: ±8kV
- Contact: ±4kV
- Environmental:
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10–90% Non-condensing
- Audio:
- Speaker and Buzzer: Yes
- LED and Button:
- LED: R/G/B/W
- Button: Factory Reset
- Certifications:
- CE, FCC, IC
- Software Integration:
- Web Applications: UniFi Protect, UniFi Access
- Mobile Apps: UniFi Protect for iOS and Android
More Information
MFRPartNum:
UACC-CHIME-POE
