PRODUCT SPECIFICATIONS

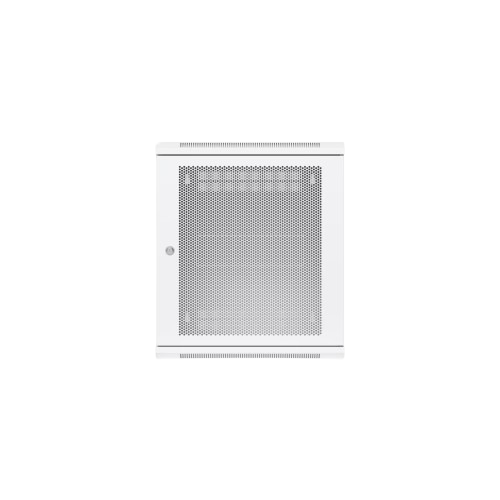

Ubiquiti UACC-Rack-12U-Wall-SW-P 12U Rack Cabinet
The Ubiquiti UACC-Rack-12U-Wall-SW-P is a fully assembled 12U wall-mount rack cabinet for space-efficient small-scale equipment deployments. It has a 4-post enclosed cabinet design, a perforated reversible front door, a swing-out rear door, built-in fans, and removable lockable side panels.
The cabinet supports an 80 kg (176 lb) maximum weight capacity and uses square mounting holes with adjustable mounting depth. Its wall-mount design, removable panels, and rear swing-out access help installers reach equipment and cabling in compact spaces.
Key Features
- Fully assembled 12U wall-mount rack cabinet
- 4-post enclosed cabinet with square mounting holes
- Perforated reversible front door with default left-hand outswing
- Solid swing-out rear door
- (2) Solid, removable and lockable side panels
- Built-in fan module with ≤ 50 dB(A) sound pressure level
- 80 kg (176 lb) maximum weight capacity
- CE, EIA/ECA-310-E, RoHS, and NDAA compliant
Applications
- Small-scale wall-mounted network equipment deployments
- Space-limited equipment rooms, offices, and installation sites
- Rack installations that need front, rear, and side access for service work
- Lockable enclosed rack storage for 12U equipment layouts
Technical Specifications
- Capacity
- U Height: 12U
- Max. Weight Capacity: 80 kg (176 lb)
- Hardware
- Rack Type: 4 post, enclosed cabinet
- Mounting Hole Type: Square
- Enclosure Material: SPCC steel
- Door/side panels: 1.2 mm (0.05')
- Main body: 1.2 mm (0.05')
- Posts: 2 mm (0.08')
- Front Door: Perforated Default left-hand outswing, reversible
- Rear Door: Solid Swing-out
- Side Panels: (2) Solid, removable and lockable
- Fan Module: ✓
- Acoustic Noise: ≤ 50 dB(A) sound pressure level
- Grounding Lugs: ✓
- Physical
- Dimensions: Packaging: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9') Rack: 600 x 700 x 639 mm (23.6 x 27.6 x 25.2')
- Weight: Packaging: 31.8 kg (70.1 lb) Rack: 25.8 kg (56.9 lb)
- Color: White
- Treatment: Powder coating
- Adjustable Mounting Depth: Default 434 mm (17.1') Max. 559 mm (22') Adjustable pitch 25 mm (1')
- Mounting: Wall mount
- Cable Entry Opening: (1) Rear wall: 350 x 100 mm (13.8 x 3.9') (2) Top: 235 x 62 mm (9.3 x 2.4') (4) Top knockout: 35 mm (1.4') (1) Bottom: 235 x 62 mm (9.3 x 2.4') (4) Bottom knockout: 35 mm (1.4')
- Security
- Security: (1) Front door lock (1) Swing out door lock (4) Side panel locks (2) Keys
- Certifications
- Standard: CE; EIA/ECA-310-E; RoHS
- NDAA Compliant: ✓
More Information
MFRPartNum:
UACC-Rack-12U-Wall-SW-P
