PRODUCT SPECIFICATIONS

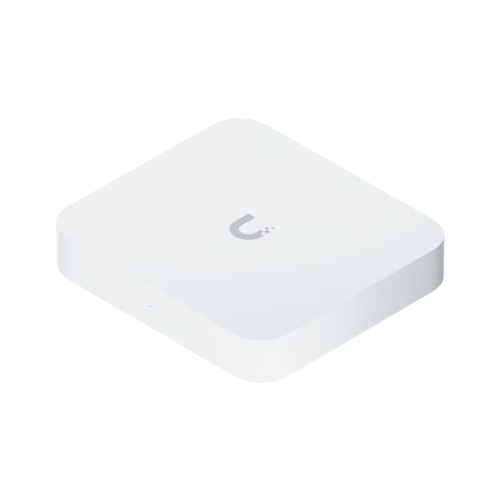

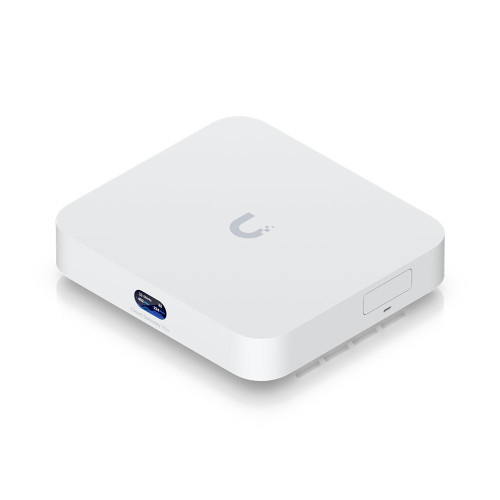

Ubiquiti UCG-Max – Compact 2.5G Cloud Gateway Max
The Ubiquiti UCG-Max is a compact, high-performance cloud gateway designed for small to medium networks. Supporting 30+ UniFi devices and 300+ clients, it offers advanced routing, next-generation security, and integrated NVR capabilities with 1.5 Gbps IDS/IPS performance. Powered by USB-C, the UCG-Max is ideal for streamlined network management with UniFi's full suite of applications.
Key Features
- Compact Design: Space-efficient gateway for small to medium-sized networks.
- High Capacity: Manages 30+ UniFi devices and 300+ clients simultaneously.
- Fast Routing: Delivers 1.5 Gbps IDS/IPS throughput with advanced security features.
- Multi-WAN Support: Features load balancing and failover for reliable connectivity.
- Integrated Storage: 512 GB NVMe SSD for video recording and network data.
- User-Friendly Display: 0.96' LCM status display for real-time monitoring.
- Energy Efficient: USB-C powered with an included adapter for easy installation.
Applications
- Ideal for small businesses or remote offices needing advanced gateway functionality.
- Supports multi-client environments with secure, segmented traffic management.
- Provides integrated NVR storage for UniFi Protect deployments.
Technical Specifications
- Mechanical:
- Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 in)
- Weight: 519 g (1.1 lb)
- Enclosure Material: Polycarbonate
- Hardware:
- Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
- System Memory: 3 GB DDR4
- Storage: 512 GB NVMe SSD
- Networking Interfaces:
- LAN: (4) 1/2.5 GbE RJ45 Ports
- WAN: (1) 1/2.5 GbE RJ45 Port
- Power:
- Power Method: USB Type-C (5V DC/5A)
- Power Consumption: Max 16.1W
- Environmental:
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Humidity: 5–95% Non-Condensing
- Certifications:
- CE, FCC, IC
- Advanced Features:
- Security:
- Application-aware firewall
- IDS/IPS threat detection
- Ad, domain, and content filtering
- Routing:
- VLAN/subnet segmentation
- Policy-based WAN and VPN routing
- License-free SD-WAN
- VPN Support:
- WireGuard, L2TP, OpenVPN server/client
- Site-to-site VPN with OpenVPN and IPsec
- Security:
- LED Indicators:
- LCM Display: 0.96' for status updates
- Ethernet: Green for Link/Activity
More Information
MFRPartNum:
UCG-Max
