website@flyteccomputers.com

Ubiquiti

Part:
UCG-Max

Ubiquiti UCG-Max Cloud Gateway Max 2.3 Gbps IPS/IDS 2.5GbE 30+ Devices 512 GB NVR Storage

$279.00
Condition:
New
Notice:
Online Reseller Restriction

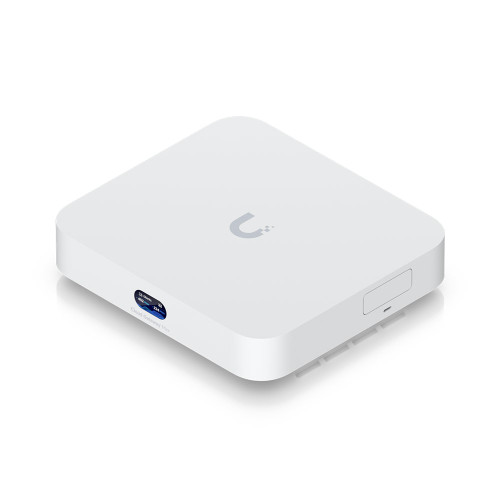

Angled top down view of UCG-Max with display
PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

Ubiquiti UCG-MAX – Compact 2.5G Cloud Gateway Max 512GB Storage

The Ubiquiti UCG-MAX is a compact UniFi Cloud Gateway Max for small and mid-size managed networks. It has five 2.5 GbE RJ45 ports, includes 512 GB NVR storage, and supports 30+ managed UniFi devices with 300+ simultaneous users connected. The unit delivers 2.3 Gbps IDS/IPS throughput and runs the UniFi application suite for Network, Protect, Access, Talk, and Connect.

For routing and security, the device includes a stateful firewall, application-aware Layer 7 firewall, content filtering, ad blocking, VLAN/subnet-based traffic segmentation, and policy-based WAN and VPN routing. It also supports license-free SD-WAN, multi-WAN load balancing, Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and Teleport VPN.

Key Features
  • Compact desktop UniFi Cloud Gateway Max with 141.8 x 127.6 x 30 mm enclosure
  • Five 2.5 GbE RJ45 ports with 2.5G/1G/100M/10M support
  • Default WAN interface: (1) 2.5 GbE RJ45, with max. WAN port count of 4
  • Supports 30+ managed UniFi devices and 300+ simultaneous users connected
  • Integrated 512 GB NVR storage for UniFi Protect recording
  • 2.3 Gbps IDS/IPS throughput with 55,000+ IDS/IPS signatures with CyberSecure
  • Runs UniFi Network, Protect, Access, Talk, and Connect applications
  • USB Type-C powered with included 5V DC/5A adapter
Applications
  • Small business network gateway with integrated UniFi management
  • Remote office routing with multi-WAN failover and VPN access
  • Managed network deployments with gateway, security, and traffic segmentation in one device
  • Camera deployments that need onboard NVR storage for UniFi Protect
  • Compact desktop installations where rack space is not available
Technical Specifications
  • Capacity
    • Managed UniFi Devices: 30+
    • Managed Cameras: (15) HD; (8) 2K; (5) 4K
    • Managed Access Hubs: 50
    • Simultaneous Users Connected: 300+
    • UniFi Applications: Network, Protect, Access, Talk, Connect
  • Ports / Interfaces
    • Port Layout: (5) 2.5 GbE RJ45 ports (2.5G/1G/100M/10M)
    • LAN Ports: (4) 1/2.5 GbE RJ45 Ports
    • Default WAN Ports: (1) 2.5 GbE RJ45
    • Max. WAN Port Count: 4
    • Management: Ethernet; Bluetooth
    • LEDs: Ethernet
    • Button: (1) Factory reset
    • LCM Display: 0.96' status display
  • Security
    • Stateful Firewall: Yes
    • Application-Aware Layer 7 Firewall: Yes
    • DPI & Traffic Identification: Yes
    • Zone-Based Firewall Advanced Filtering: Regions, Domains, Apps
    • Content Filtering: Yes
    • Intrusion Prevention: IPS/IDS
    • Ad Blocking: Yes
    • IDS/IPS Signatures: 55,000+ with CyberSecure
    • VLAN/Subnet-based Traffic Segmentation: Yes
    • IDS/IPS Throughput: 2.3 Gbps
  • VPN & SD-WAN
    • License-Free SD-WAN: Yes
    • Site-to-Site VPN: Site Magic; IPsec; OpenVPN
    • VPN Server: Identity Endpoint One-Click VPN; Teleport Zero-Configuration VPN; WireGuard; OpenVPN; L2TP
    • VPN Client: OpenVPN; WireGuard
  • Networking
    • Multi-WAN Load Balancing: Yes
    • Dynamic Routing: OSPF
    • Advanced QoS: Yes
    • Multicast DNS: mDNS
    • Advanced NAT: SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT
    • Integrated RADIUS Server: Yes
    • RADIUS over TLS: RadSec
    • Additional Internet Failover: UniFi LTE Backup
    • Internet Quality and Outage Reporting: Yes
    • MAC Address Table Size: 2,000
    • Policy-based WAN and VPN Routing: Yes
    • Customizable DHCP Server: Yes
    • IPv6 ISP Support: Yes
    • IGMP Proxy: Yes
    • Virtual Network Override: Yes
    • All Traffic Flows: Yes
  • Hardware
    • Storage: 512 GB NVMe SSD
    • Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
    • System Memory: 3 GB
    • Enclosure Material: Polycarbonate
    • Form Factor: Compact desktop
    • ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
    • NDAA Compliant: Yes
  • Power
    • Power Method: USB type C (5V DC/5A)
    • Power Supply: USB type C (5V DC/5A) (Adapter included)
    • Supported Voltage Range: 100-240V AC
    • Max. Power Consumption: 16.1W
    • Heat Dissipation: 55 BTU/hr
  • Physical
    • Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2')
    • Weight without SSD: 460 g (1 lb)
    • Weight with SSD: 519 g (1.1 lb)
  • Environmental
    • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
    • Ambient Operating Humidity: 5 to 95% noncondensing
  • Software
    • Mobile App Requirements: UniFi iOS™ and Android™: Version 10.17.2 and later
  • Certifications
    • Certifications: CE, FCC, IC, Anatel: 09004-24-08356, SRRC

More Information

MFRPartNum:
UCG-Max
