Ubiquiti

Part:
USW-Mission-Critical-US

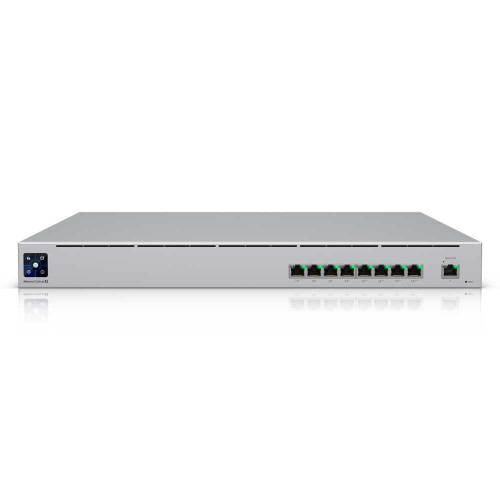

Ubiquiti Switch Mission Critical with integrated Lithium-ion battery

$998.90
$999.00
Condition:
New

PRODUCT SPECIFICATIONS

A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.

Features:

  • (4) GbE PoE+, (4) GbE PoE++ ports
  • (1) GbE port
  • (2) 110V AC outputs; 120W total PoE available
  • Battery backup power system
  • Internal battery 368Wh

Technical Description:

  • Mechanical
    • Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7')
    • Weight:
      • Without mount: 9 kg (19.9 lb)
      • With mount: 9.2 kg (20.3 lb)
    • Enclosure material: SGCC steel
    • Mount material: SGCC steel
    • Supported rack depth: 700 to 1000 mm (27.6 to 39.4')
  • Hardware
    • Management interface: Ethernet In-Band
    • Networking interface: (9) GbE RJ45 ports
    • PoE interface:
      • (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
      • (4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-)
    • Total non-blocking throughput: 9 Gbps
    • Switching capacity: 18 Gbps
    • Forwarding rate: 26.78 Mpps
    • Power method:
      • (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz
      • (1) External battery DC input 48V DC, 6A
      • (1) Internal Lithium-Ion battery, 368Wh
    • Power supply:
      • Universal AC input: AC/DC, internal, 240W
      • External battery port: DC, external, 240W
    • Max. power consumption:
      • 240W (Including PoE output)
      • 50W (Excluding PoE output)
    • Total available PoE: 120W
    • Power output
      • US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz
      • EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz
    • Power output budget: 80W
    • Max. PoE wattage per port by PSE:
      • PoE+: 30W
      • PoE++: 60W
    • Voltage range PoE mode:
      • PoE: 44-57V
      • PoE+/PoE++: 50-57V
    • ESD/EMP protection: Air/contact: ± 24kV
    • LCM display: (1) 1.3' touchscreen
    • Ambient operating temperature: -5 to 40° C (23 to 104° F)
    • Ambient operating humidity: 5 to 95% noncondensing
    • Certifications: CE, FCC, IC
  • Switching Features
    • Layer 2 features:
      • IGMP snooping
      • STP / RSTP with priorities and port-level disable
      • Port isolation
      • Storm control
      • Voice VLAN
      • Port mirroring
      • LACP port aggregation
      • Multicast / broadcast rate limiting
      • MAC address blocking
      • Flow control
      • 802.1X control
      • Jumbo frames
      • Proprietary loop protection
      • DHCP snooping / guarding
      • Egress rate limit
      • LLDP-MED
      • Port restricted by MAC
      • Device isolation with ACLs
  • LEDs
    • Ethernet: Green: 1 Gbps
    • Amber: 10/100 Mbps
    • PoE: Amber: PoE/PoE+/PoE++
    • Power output: Blue: active
  • Application Requirements
    • UniFi Network: Version 6.2.26 and later

More Information

MFRPartNum:
USW-Mission-Critical
