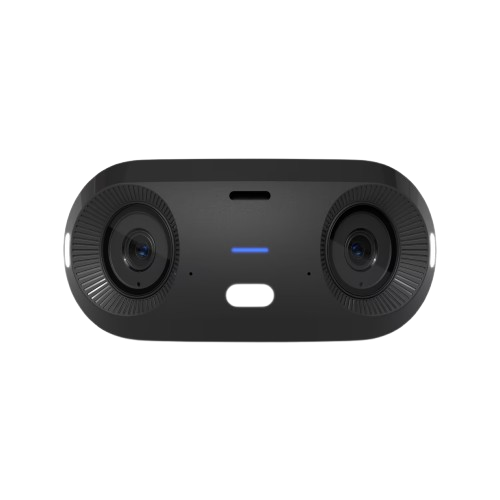

Ubiquiti UVC-G6-180-B 16MP Dual Sensor PoE+ Security Camera 180° Panoramic IP66

Ubiquiti UVC-G6-180-B

Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180° coverage.

Technical Specification

• Overview:
  • Dimensions: 136 x 64 x 92 mm  (5.6 x 2.5 x 3.6')
  • IR Night Vision: 20 m (65 ft)
  • Face Recognition: ✓
  • License Plate Recognition: ✓
  • Smart Detections (People, Vehicles, Animals): ✓
  • Resolution: Dual 4K
  • Field of View: H: 180°, V: 56.7°
  • Audio: Two-way audio
  • Weatherproofing: IP66
  • Tamper Resistance: IK04
  • Mounting: Ceiling, Pole, Wedge Mount, Pan Adapter (Included) Camera Junction Box, Arm mount, Dual Mount, Gang Box Mounting Plate (Optional)
• Performance:
  • Networking Interface: 10/100 MbE RJ45 port
  • Video:
    • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
    • Max. Frame Rate: 20 FPS
    • Resolution: 16MP 7680 x 2160 (3.5:1)
  • Optics:
    • Sensor: Dual 1/1.8' 8MP
    • Lens: (2) Fixed focal length
    • Night Mode: Built-in IR LED illumination and IR cut filter
• Hardware:
  • Max. Power Consumption: 15W
  • Supported Voltage Range: 37—57V DC
  • Power Method: PoE+
  • Processor: Quad-core Arm® Cortex®-A53 based chip
  • Weight: 839 g (1.8 lb)
  • Enclosure Material: Aluminum alloy, polycarbonate
  • Mount Material: Polycarbonate, stainless steel
  • Expansion Slot: MicroSD card
  • Button: (1) Factory reset\
  • Ambient Operating Temperature: -20 to 50º C (-4 to 122º F)Ambient Operating Humidity: 0 to 90% noncondensing
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC
