PRODUCT SPECIFICATIONS
SKU: PA2-KIT
Fanvil PA2 KIT (SPEAKER, MIC, BUTTON, IP CAMERA BUTTON)
The Fanvil PA2 Kit is an accessory package for Fanvil SIP Paging Gateway PA2. It includes an IP camera module, speaker module, microphone module, and button module. You can quickly build high-quality audio/video intercom equipment with PA2 Kit, eliminating the components selection, matching test, and reliability test cumbersome process.
Get an official accessory kit for your Fanvil PA2 SIP Paging Gateway & Video Intercom. This kit includes four modules: a speaker, microphone, button, and IP camera. The 5W loudspeaker and -38dB±2 microphone are waterproof and dustproof, and both come with a self-adhesive layer for simple installation.
The stainless steel button is IP67 and IK10 rated with a mechanical lifetime of 200,000 clicks. It is backlit using an LED with a lifetime of 400,000 hours. The IP camera module gives you 720p HD video. It is powered through the PA2 gateway’s LAN port. The wide-angle lens with f/1.2 aperture provides color video down to 0.1 lux.
FEATURES
- High-reliability components
- Plug and Play
- 720P camera module to achieve HD video call; The lens mounting height and Angle can be adjusted to meet the requirements of various scenarios
- High sensitivity pickup, waterproof, dustproof design microphone module, suitable for harsh environment application;
- 5W/8Ω Speaker module satisfied the noisy environment to the demand of the high loudness of the intercom equipment
COMPATIBILITY

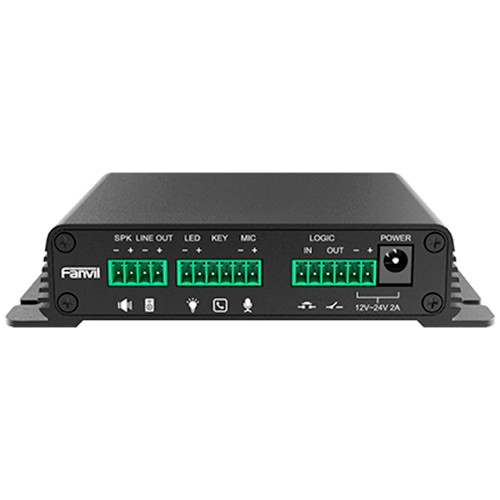

Fanvil PA2 SIP Video Intercom & Paging Gateway
Technical Description
- Speaker module
- Microphone module
- Button module
- IP camera module
Networking Protocol
- Supports PoE (802.3af
- Primary and secondary DNS servers are supported
- Support VLAN
- Supports SNTP client
- Support VPN L2TP / PPTP / IPSec
Audio
- Narrowband speech coding: G.711a / u, G.723.1, G.726-32K, G.729AB
- Broadband speech coding: G.722
- Half Duplex Echo Cancellation (AEC)
- DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
Physical Specification
- 2 RJ45 interface: Yellow: WAN port 10 / 100M adaptive, support POE PoE: 802.3af (Class 3: 6.49 ~ 12.95W) Black: LAN port (Only connected to the original camera) Cable: Super five lines or better
- 1 blue indicator (SIP status and network status)
- 2 volume plus or minus key
- 1 restore factory settings key
- 1 recording output interface: 3.5mm standard audio interface 15 Ohm impedance
- 1 ground screw
- 1 way passive speaker interface: Output power: 4Ω, POE / 10W, 12V / 10W,18V / 20W, 24V / 30W; related to supply voltage. Wire diameter: 18 AWG or larger diameter, Interface:Pluggable terminal block
- 1 headset speaker: Output: 32 Ohm 1.2V interface: Pluggable terminal block
- 1 DSS key interface (4 lines): Indicator: Output 5.0V 5mA Interface:pluggable terminal block
- 1 way microphone input interface: Recommendation: Use an electret condenser microphone Sensitivity: -38dB, Impedance 2.2 K Ohm bias voltage 2.2V Interface:Pluggable terminal block
- 1 short circuit input and output interface (built-in relay): Relay: MAX DC30V / 1A, AC125V / 0.5A, Interface:pluggable terminal block
- 2 parallel power input interface: 12V-24V / 2A DC 1 road for the 5.5mm DC power seat 1 road way 2Pin pluggable terminal block
- Standby power consumption: DC12V 1.32W / POE 1.78W
- Housing material: aluminum alloy shell
- Installation: Indoor installation
- Operating temperature: -30 ~ 70 ?
- Storage temperature: -40 ~ 70 ?
- Relative humidity: 10% – 95%
- Equipment size: 113x83x28mm
- Packing size: 138x108x77mm
- Equipment weight: 250g
