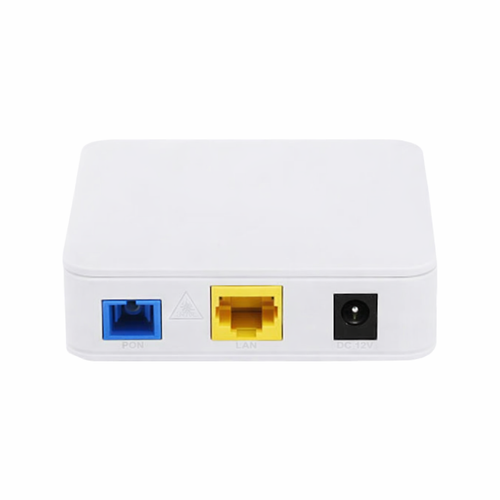

Iuron IU-UP-XP-1G-A XPON Dual Mode GPONEPON 1GE ONU Layer 2/3 Firewall

Iuron IU-UP-XP-1G-A

The IU-UP-XP-1G-A is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. The ONU is based on high-performance chip technology solutions, and supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.

The ONU has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, which is easy to manage and maintain. It can provide QoS guarantee for different services. The ONU complies with international technical standards such as IEEE802.3ah and ITU-T G.984.

Key Features

• Powerful Firewall
• Detecting Rogue ONU
• XPON Dual Mode Automatic Access to EPON/GPON

Technical Specification

• Dimensions: (L X W X H): 82mm X 82mm X 25mm
• Net weight: 0.085Kg
• Function Data:
  • XPON Mode: Dual mode,Auto-access to EPON/GPON OLT
  • Uplink Mode: Bridging and Routing Mode
  • Abnormal protection: Detecting Rogue ONU, Hardware Dying Gasp
  • Firewall: DDOS, Filtering Based on ACL/MAC/URL
• Interface Parameter:
  • PON interface:
    • 1 XPON port (EPON PX20+ & GPON Class B+)
    • SC single mode, SC/UPC connector
    • TX optical power: 0～+4dBm
    • RX sensitivity: -27dBm
    • Overload optical power: -3dBm(EPON) or - 8dBm(GPON)
    • Transmission distance: 20KM
    • Wavelength: TX 1310nm, RX1490nm
  • LAN interface:
    • 1xGE, Auto-negotiation RJ45 connectors
• Hardware Parameter:
  • Operating condition:
    • Operating temp: -30 ~ +60°C
    • Operating humidity: 10 ~ 90% (non-condensing)
  • Storing condition:
    • Storing temp: -30 ~ +70°C
    • Storing humidity: 10 ~ 90% (non-condensing)
  • Power adapter: DC 12V, 0.5A, external AC-DC power adaptor
  • Power supply: ≤4W
  • Interfaces: 1GE
  • Indicators: SYS, LINK/ACT, REG
• Product Feature:
  • Basic:
    • Support MPCP discover & register
    • Support authentication Mac/Loid/Mac+Loid
    • Support Triple Churning
    • Support DBA bandwidth
    • Support auto-detecting, auto-configuration and auto firmware upgrade
    • Support SN/Psw/Loid/Loid+Psw authentication
  • Alarm:
    • Support Dying Gasp
    • Support Port Loop Detect
    • Support EthPort Loss
  • LAN:
    • Support Port rate limiting
    • Support Loop detection
    • Support Flow control
    • Support Storm control
  • VLAN:
    • Support VLAN tag mode
    • Support VLAN transparent mode
    • Support VLAN trunk mode(max 8 vlans)
    • Support VLAN 1:1 translation mode(≤ 8 vlans)
    • Auto VLAN detection
  • Multicast:
    • Support IGMPv1/v2/Snooping
    • Max Multicast vlan 8
    • Max Multicast Group 64
  • QOS:
    • Support 4 queues
    • Support SP and WRR
    • Support 802.1P
  • L3:
    • Support IPv4/IPv6
    • Support DHCP/PPPOE/StaticIP
    • Support Static route
    • Support NAT
  • Management:
    • Support CTC OAM2.0 and 2.1
    • Support ITUT984.x OMCI
    • Support WEB
    • Support TELNET
    • Support CLI
