PRODUCT SPECIFICATIONS

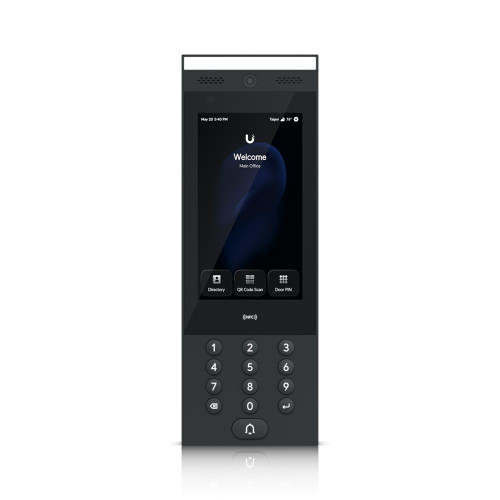

Ubiquiti UA-G3-Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Key Features
- HD camera
- Speaker
- Proximity sensor
- Directory to request entry
- Microphones
- Doorbell to request entry
- LED floodlight
- Ambient sensor
- 7' touchscreen
- Unlock using UniFi Identity mobile app;QRcode and Touch Pass
- Unlock using an NFC card
- PIN unlocking
- Wall mountable
- Weatherproof IP65 rated (outdoor exposed -30 to 60 C)
Technical Specification
- Overview:
- Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1')
- Integrated Camera
- NFC Card & Keyfob Access
- PIN Access
- Touch Pass
- Mobile Unlock
- Two-Way Intercom & Doorbell Access
- Weatherproofing: IP65
- Mechanical:
- Weight:
- Device: 965 g (2.1 lb)
- Bracket: 445 g (1 lb)
- Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
- Mount Material: Powder-coated stainless steel
- Mounting:
- Wall mount, adapter to the gooseneck pedestal (Included)
- Surface angle, flush mount, sunshield kit (Optional)
- Weight:
- Hardware:
- Indoor and Outdoor Use: Yes
- Ambient Operating Temperature:
- Device: -30 to 60° C (-22 to 140° F)
- Display: -25 to 60° C (-13 to 140° F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Networking Interface: (1) GbE RJ45 port
- Connectivity:
- BLE 4.2
- NFC
- Power Method:
- PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Max. Power Consumption: 13W
- Supported Voltage Range: 48V DC
- Sensors:
- Proximity sensor
- ALS sensor
- Display: 177 mm (7') diagonal
- Touch Screen Technology: Capacitive multi-touch
- Display Luminance: Max. 1000 nits (Typical)
- Screen Orientation: Portrait
- Resolution: 1024 x 600 px
- Microphone
- Speaker
- NFC Frequency: 13.56 MHz
- NFC Read Range: < 30 mm (1.18'')
- NFC Technology:
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
- MIFARE Classic / MIFARE DESFIRE
- Sony FeliCa™ (ID only)
- NFC Forum tags T1T, T2T, T3T, T4T and T5T
- ECP 2.0
- LEDs: Amber Learn More
- Buttons: (1) Factory-reset
-
PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
-
UL 294 Level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
- CAN/ULC-60839-11-1 Grade:
- Grade assignment: I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Document number, and issue date and/or revision level: UA-G3-Intercom, V01
- Software:
- Management Application: Access
- Software Information: The software version can be checked at https://unifi.ui.com
More Information
MFRPartNum:
UA-G3-Intercom
