PRODUCT SPECIFICATIONS

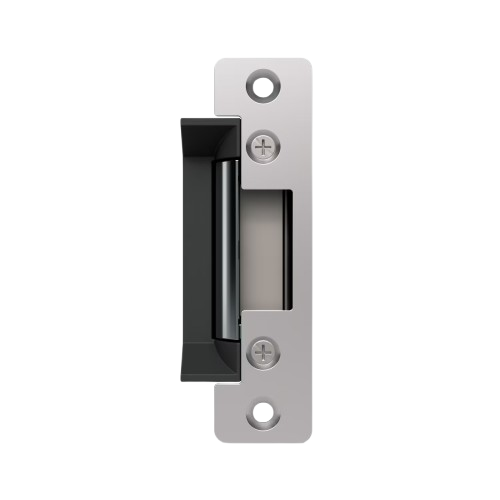

Ubiquiti UACC-Lock-Strike-Secure-15mm Fail-Secure Strike Lock
The Ubiquiti UACC-Lock-Strike-Secure-15mm is a fail-secure electric strike lock that connects to a UniFi Access Hub. It supports single wooden or metal doors, provides 1,200 kg (2,645 lb) holding force, and uses 12V DC ±10% power. The lock is designed for door frame recess mounting and includes dry contact door status signaling.
As a fail-secure lock, it remains locked during power loss, making it suited for restricted areas where maintaining security is the priority. The lock body is made from zinc alloy, while the front plate and latches are stainless steel.
Key Features
- Fail-secure electric strike lock for UniFi Access Hub installations
- 1,200 kg (2,645 lb) holding force
- Supports single wooden or metal doors
- 12V DC ±10% support voltage range
- 400mA ±10% current power
- Door frame recess mount
- Dry contact door status contact with max. 30V DC, 0.1A rating
- NDAA compliant with FCC, IC, and CE certifications
Applications
- Single-door access control installations
- Wooden or metal door frame deployments
- Restricted-area doors that should remain locked during power loss
- UniFi Access Hub connected electric strike installations
Technical Specifications
- Hardware
- Lock Type: Fail secure
- Support Door Type: Single door (Wooden/metal)
- Holding Force: 1,200 kg (2,645 lb)
- Enclosure Material: Lock body: zinc alloy Front plate/latches: stainless steel
- Door Status Contact Type: Dry contact
- Door Status Contact Logic: Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
- Door Status Contact Rating: Max. 30V DC, 0.1A
- Ports / Interfaces
- Wiring: (1) Lock 12V/NO (red) (1) Lock 12V/COM (black)
- Power
- Current Power: 400mA ±10%
- Support Voltage Range: 12V DC ±10%
- Physical
- Dimensions: Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4') Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1') Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1')
- Weight: Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz)
- Mounting: Door frame recess mount
- Environmental
- Ambient Storage Temperature: -20 to 70° C (-4 to 158° F)
- Ambient Operating Temperature: -10 to 60° C (14 to 140° F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Certifications
- NDAA Compliant: Yes
- Certifications: FCC, IC, CE
