PRODUCT SPECIFICATIONS
Ubiquiti USW-Ultra-210W

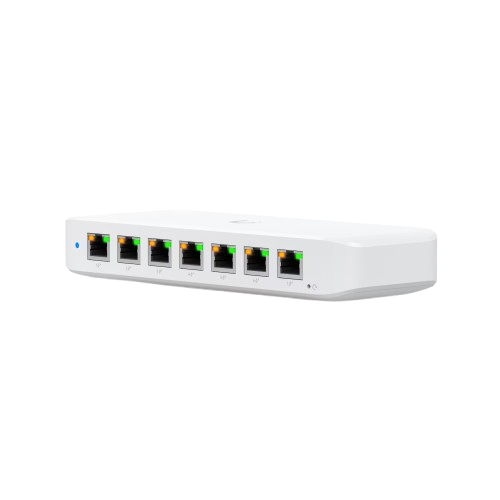

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Key Features:
- Dimensions: 203 x 76 x 33 mm(8 x 3 x 1.3')
- Port Layout:
- 1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: PoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202
- Form Factor: Compact desktop, wall, magnetic
Technical Specifications:
- Performance:
- Switching Capacity: 16 Gbps
- Total Non-Blocking Throughput: 8 Gbps
- Forwarding Rate: 12 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features:
- STP RSTP
- Egress Rate Limit
- Flow Control
- Storm Control
- Multicast Broadcast Rate Limiting
- Port Isolation
- Port Mirroring
- Jumbo Frames
- Loop Protection
- Hardware:
- PoE Ports:
- PoE+: 7
- PoE++: 1
- Max. PoE Wattage per Port by PSE:
- PoE+: 30W
- Max. Power Consumption:
- 9W (Excluding PoE Output) with PoE input
- 8W (Excluding PoE Output) with adapter input
- 210W (Including PoE Output) with 210W AC adapter input
- Power Method:
- (1) AC/DC adapter (Included)
- (1) PoE++
- Power Input Method:
- DC Input
- PoE
- Power Supply: AC/DC, external, 210W
- Supported Voltage Range: 50—57V DC/PoE
- Management: Ethernet
- Heat Dissipation (Excluding PoE Output):
- 30.708 BTU/hr
- 27.296 BTU/hr
- Weight:
- Device: 320 g (11.3 oz)
- Wall mount: 45 g (1.6 oz)
- Adapter: 770 g (1.7 lb)
- Enclosure Material: Polycarbonate
- Ambient Operating Temperature:
- PoE++ input: -30 to 60° C (-22 to 140° F)
- 210W AC adapter input: -20 to 60° C (-4 to 140° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
- PoE Ports:
More Information
MFRPartNum:
USW-Ultra-210W
